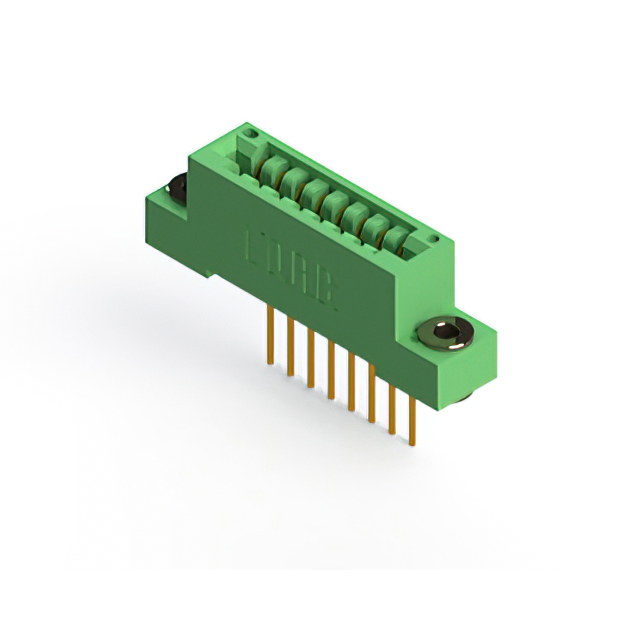

346-008-541-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 8POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-008-541-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 8POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-008-541-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
346-008 Series
| Part | Flange Feature | Flange Feature | Contact Material | Mounting Type | Contact Finish | Material - Insulation | Contact Type | Color | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Rows | Gender | Termination Rows | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | 0.128 in | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | ||||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Copper Alloy | Through Hole Right Angle | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder Wire Wrap | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 3.25 mm | 0.128 in | Copper Alloy | Through Hole | Gold | Polyester Thermoplastic | Cantilever | Green | 8 | 8 | 8 | 8 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 1 | Female | 1 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.56 | |
Description
General part information
346-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
