51-422.036

Active

EAO

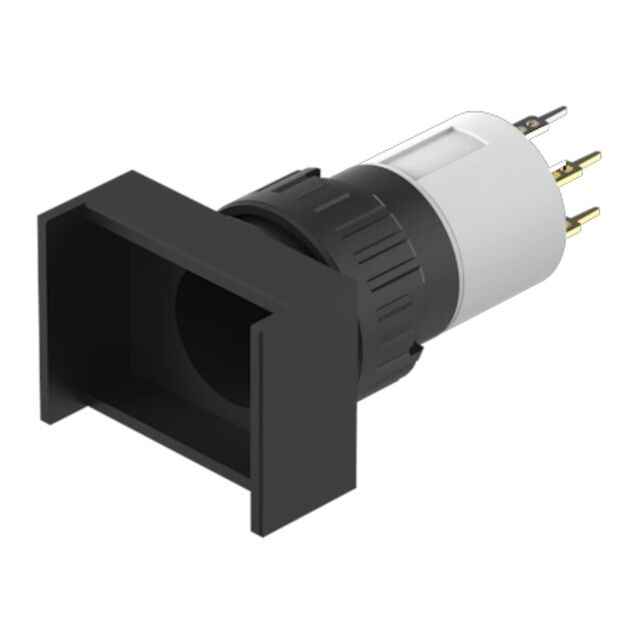

SWITCH PB DPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	51-422.036

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB DPST-NC 0.1A 42V

Part	Switch Function	Termination Style	Current Rating (Amps)	Actuator Marking	Circuit	Voltage Rating - DC	Ingress Protection	Actuator Type	Type	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life
EAO 51-422.036	On-Mom	PC Pin, Solder Lug	100 mA	No Marking	DPST-NC	42 V	IP65 - Dust Tight, Water Resistant	Rectangular, Button (Not Included)	Standard	Panel Mount, Front	16 mm	42 V	55 °C	-25 °C	5000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NC Standard Panel Mount, Front
