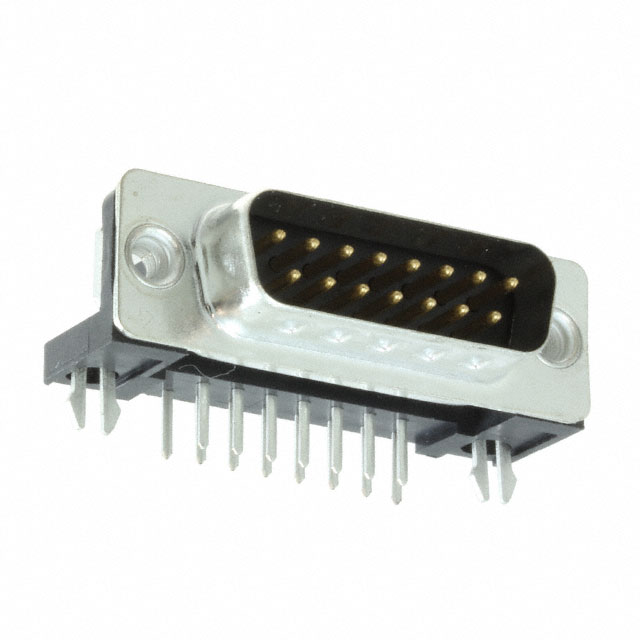

FCE17A15PA410

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCE17A15PA410

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCE17A15PA410

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Filter, Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout	2
Termination	Solder

FCE17A15 Series

Part	Color	Connector Type	Material Flammability Rating	Flange Feature	Connector Style	Shell Size, Connector Layout	Features	Mounting Type	Number of Positions	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Number of Rows	Contact Type	Contact Finish	Housing Color	Convert From (Adapter End)	Includes	Convert To (Adapter End)	Termination	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) FCE17A15SM290	Black	Receptacle Female Sockets	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub	2	Filter	Free Hanging (In-Line)	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold
Amphenol ICC (Commercial Products) FCE17-A15AD-250			UL94 V-0		Connector Saver		Filter	Free Hanging (In-Line)		5 A		85 °C	-40 °C	15 µin	0.38 µm		2		Gold	Black	D-Sub 15 Pin Male	1 Connector 2 Jack Screws	D-Sub 15 Pin Female
Amphenol ICC (Commercial Products) FCE17A15SB4E0	Black	Receptacle Female Sockets	UL94 V-0	Housing/Shell (4-40)	D-Sub	2	Board Lock Filter	Through Hole Right Angle	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold					Solder	10.29 mm	0.405 "
Amphenol ICC (Commercial Products) FCE17A15SA490	Black	Receptacle Female Sockets	UL94 V-0	Housing/Shell (4-40)	D-Sub	2	Board Lock Filter	Through Hole Right Angle	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold					Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17A15PA410	Black	Male Pins Plug	UL94 V-0	Housing/Shell (4-40)	D-Sub	2	Board Lock Filter Grounding Indents	Through Hole Right Angle	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold					Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17-A15SA-450	Black	Receptacle Female Sockets	UL94 V-0	Housing/Shell (4-40)	D-Sub	2	Board Lock Filter	Through Hole Right Angle	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold					Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17A15SC49B	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	D-Sub	2	Filter Mounting Brackets	Through Hole Right Angle	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold					Solder	14.99 mm	0.59 "
Amphenol ICC (Commercial Products) FCE17A15PM240	Black	Male Pins Plug	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub	2	Filter Grounding Indents	Free Hanging (In-Line)	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold
Amphenol ICC (Commercial Products) FCE17A15PM490	Black	Male Pins Plug	UL94 V-0	Cable Side	D-Sub	2	Filter Grounding Indents	Free Hanging (In-Line)	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold
Amphenol ICC (Commercial Products) FCE17A15SM240	Black	Receptacle Female Sockets	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub	2	Filter	Free Hanging (In-Line)	15	5 A	Phosphor Bronze	85 °C	-40 °C	15 µin	0.38 µm	Thermoplastic Glass Filled	2	Signal	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 17.31

Description

General part information

FCE17A15 Series

15 Position D-Sub Plug, Male Pins Connector
