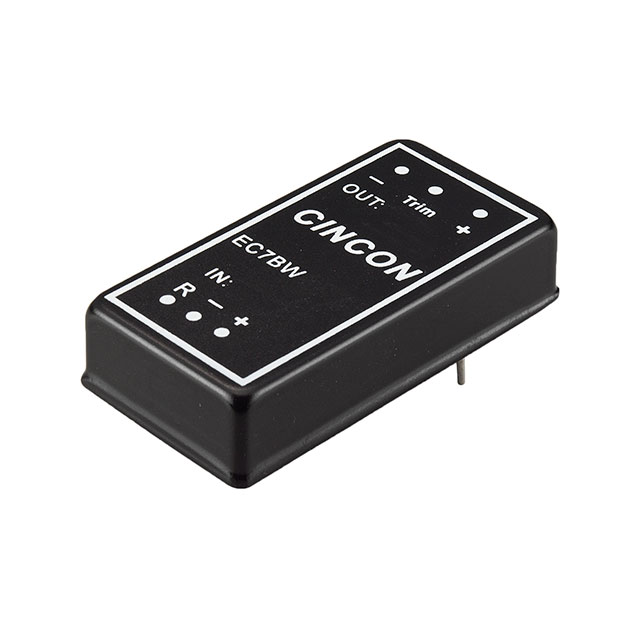

EC7BW-24S15N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC7BW-24S15N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC7BW-24S15N

Applications	Railway, ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.33 A
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Standard Number	50155
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

EC7BW Series

Part	Number of Outputs	Control Features	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Approval Agency	Standard Number	Standard Number	Voltage - Output 1	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Applications	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	Input Type	Current - Output (Max)
Cincon Electronics Co. LTD EC7BW-24D15S	2	Active High Enable	Through Hole	88 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V	-15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module	666 mA	0.666 A	9 V	20 W	36 V
Cincon Electronics Co. LTD EC7BW18-72S12-EDRT	1			87 %	100 °C	-40 °C	Remote On/Off		CE			12 V		1.43 "	4.45 "	2.33 in	113 mm	59.2 mm	36.4 mm	3000 V	ITE (Commercial) Railway					20 W		10 V	1.67 A	160 V	DC
Cincon Electronics Co. LTD EC7BW-24D15N	2	Active Low Enable	Through Hole	88 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V	-15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module	666 mA	0.666 A	9 V	20 W	36 V
Cincon Electronics Co. LTD EC7BW-110D15N	2	Active Low Enable	Through Hole	88.5 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V	-15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	3000 V	ITE (Commercial) Railway	Isolated Module	667 mA	667 mA	43 V	20 W	160 V
Cincon Electronics Co. LTD EC7BW-110D12N	2	Active Low Enable	Through Hole	89 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	12 V	-12 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	3000 V	ITE (Commercial) Railway	Isolated Module	833 mA		43 V	20 W	160 V					833 mA
Cincon Electronics Co. LTD EC7BW-48D15N	2	Active Low Enable	Through Hole	88 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V	-15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module	666 mA	0.666 A	18 V	20 W	75 V
Cincon Electronics Co. LTD EC7BW-24S15N	1	Active Low Enable	Through Hole	90 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module			9 V	20 W	36 V		1.33 A
Cincon Electronics Co. LTD EC7BW-24S15S	1	Active High Enable	Through Hole	90 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	15 V		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module			9 V	20 W	36 V		1.33 A
Cincon Electronics Co. LTD EC7BW-24S33	1	Active High Enable	Through Hole	87 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	3.3 V		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module			9 V	18 W	36 V		5.5 A
Cincon Electronics Co. LTD EC7BW-24S05NS	1	Active Low Enable	Through Hole	90 %	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	CE cURus	60950-1	50155	5 V		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	ITE (Commercial) Railway	Isolated Module			9 V	20 W	36 V		4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 44.28

Description

General part information

EC7BW Series

Isolated Module DC DC Converter 1 Output 15V 1.33A 9V - 36V Input
