861-13-020-30-002000

Active

Mill-Max Manufacturing Corp.

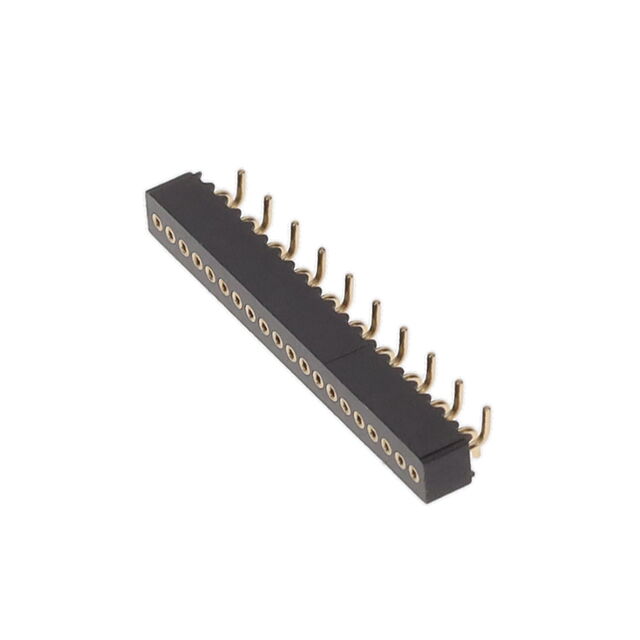

CONN RCPT 20POS 0.039 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

861-13-020-30-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 20POS 0.039 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	861-13-020-30-002000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	3.78 mm
Insulation Height [z]	0.149 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Termination	Solder

861-13 Series

Part	Current Rating (Amps)	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Material	Contact Shape	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Number of Rows	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Mill-Max Manufacturing Corp. 861-13-008-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	8	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-009-30-002000	3 A	UL94 V-0	0.149 "	3.78 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	9	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Surface Mount	Solder	-55 °C	125 °C			30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-041-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	41	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-020-30-002000	3 A	UL94 V-0	0.149 "	3.78 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	20	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Surface Mount	Solder	-55 °C	125 °C			30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-010-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	10	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-012-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	12	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-017-30-002000	3 A	UL94 V-0	0.149 "	3.78 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm		Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Surface Mount	Solder	-55 °C	125 °C			30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-005-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm		Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-025-30-002000	3 A	UL94 V-0	0.149 "	3.78 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm		Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Surface Mount	Solder	-55 °C	125 °C			30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 861-13-044-10-002000	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	Push-Pull	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle	Black	0.039 in	1 mm	44	Female Socket	1	Beryllium Copper	10 çin	0.25 çm	Through Hole	Solder	-55 °C	125 °C	2.34 mm	0.092 in	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.94
		25	$ 15.92

Description

General part information

861-13 Series

20 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
