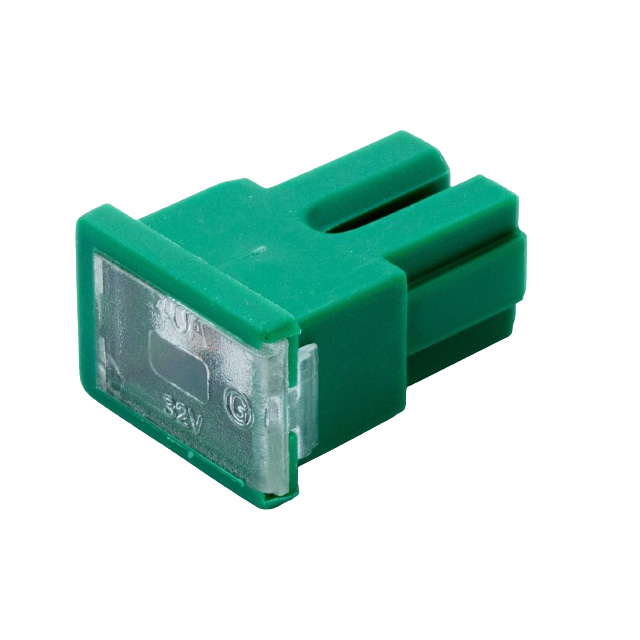

TFLF-40A

Active

OptiFuse

FUSE AUTO 40A 58VDC AUTO LINK

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 40A 58VDC AUTO LINK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFLF-40A	TFLF Series

Approval Agency	ISO, UL 248, SAE, cURus	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Green	Green, Pink, Red
Current Rating (Amps)	40 A	30 - 50 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Auto Link	Auto Link
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	22.2 mm	22.2 mm
Size / Dimension [x]	0.874 in	0.874 in
Size / Dimension [y]	15 mm	15 mm
Size / Dimension [y]	0.591 in	0.591 in
Size / Dimension [z]	30 mm	30 mm
Size / Dimension [z]	1.181 in	1.181 in
Voltage Rating - DC	32 V	32 V

FUSE AUTO 40A 58VDC AUTO LINK

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Approval Agency	Package / Case	Color	Response Time	Mounting Type	Fuse Type	Breaking Capacity @ Rated Voltage	Current Rating (Amps)
OptiFuse TFLF-40A	22.2 mm	30 mm	15 mm	1.181 in	0.591 in	0.874 in	32 V	cURus, ISO, SAE, UL 248	Auto Link	Green	Fast Blow	Requires Holder	Automotive	1 kA	40 A
OptiFuse TFLF-30A	22.2 mm	30 mm	15 mm	1.181 in	0.591 in	0.874 in	32 V	cURus, ISO, SAE, UL 248	Auto Link	Pink	Fast Blow	Requires Holder	Automotive	1 kA	30 A
OptiFuse TFLF-50A	22.2 mm	30 mm	15 mm	1.181 in	0.591 in	0.874 in	32 V	cURus, ISO, SAE, UL 248	Auto Link	Red	Fast Blow	Requires Holder	Automotive	1 kA	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 A AC 32 V DC Fuse Automotive Requires Holder Auto Link
