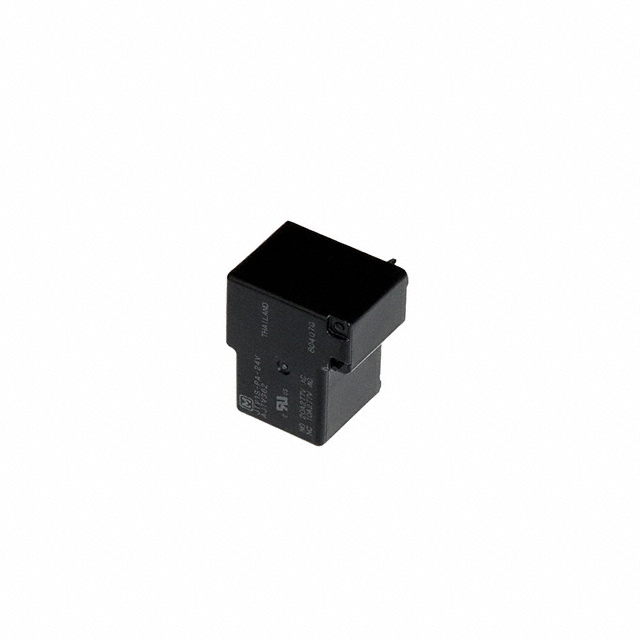

JTV1S-PA-24V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 20A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 20A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Contact Rating (Current)	Coil Insulation	Termination Style	Must Operate Voltage	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Coil Type	Seal Rating	Contact Material	Must Release Voltage	Contact Form	Relay Type	Switching Voltage [Max]	Release Time	Load - Max Switching	Operate Time	Termination Style
Panasonic Electric Works JTV1S-PA-24V	Through Hole	20 A	Class F	PC Pin	18 VDC	576 Ohms	85 °C	-55 °C	41.7 mA	24 VDC	Non Latching	Sealed - Fully	Silver Tin Oxide (AgSnO)	2.4 VDC	SPST-NO (1 Form A)	General Purpose	277 VAC	10 ms	5540 VA	15 ms
Panasonic Electric Works JTV1S-PA-12V	Through Hole	20 A	Class F	PC Pin	9 VDC	144 Ohms	85 °C	-55 °C	83.3 mA	12 VDC	Non Latching	Sealed - Fully	Silver Tin Oxide (AgSnO)	1.2 VDC	SPST-NO (1 Form A)	General Purpose	277 VAC	10 ms	5540 VA	15 ms
Panasonic Electric Works JTV1S-TMP-18V	Through Hole	20 A	Class F	PC Pin Quick Connect	13.5 VDC	324 Ohms	85 °C	-55 °C		18 VDC	Non Latching	Sealed - Fully	Silver Tin Oxide (AgSnO)	1.8 VDC	SPST-NO (1 Form A)	General Purpose	277 VAC	10 ms	5540 VA	15 ms	0.25 in
Panasonic Electric Works JTV1S-TMP-12V	Through Hole	20 A	Class F	PC Pin Quick Connect	9 VDC	144 Ohms	85 °C	-55 °C	83.3 mA	12 VDC	Non Latching	Sealed - Fully	Silver Tin Oxide (AgSnO)	1.2 VDC	SPST-NO (1 Form A)	General Purpose	277 VAC	10 ms	5540 VA	15 ms	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
