9260 060500

Active

Belden Inc.

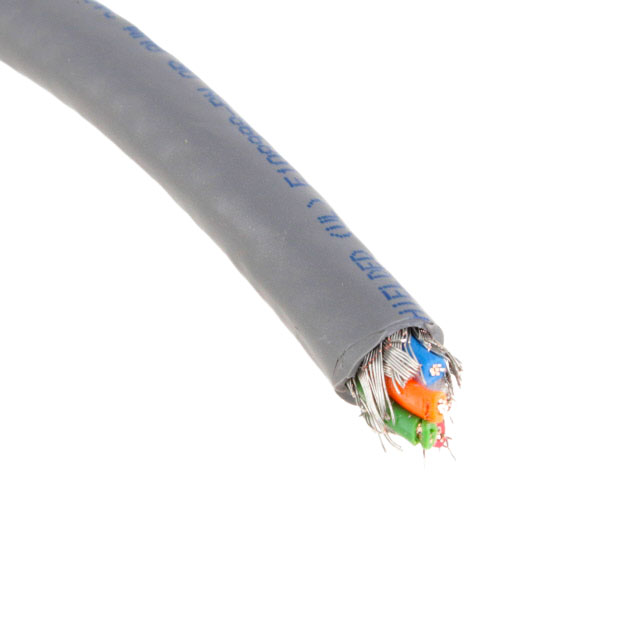

CABLE 6CON 20AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6CON 20AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9260 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Shield Coverage	Number of Conductors	Shield Type	Ratings	Wire Gauge	Voltage	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Length	Length
Belden Inc. 9260 060500	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.305 in	7.75 mm	Audio Control Instrumentation	85 %	6	Braid	UL Style 2464	20 AWG	300 V	Chrome	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	28	7	-20 C	80 C	Copper Tinned	Multi-Conductor
Belden Inc. 9260 0601000	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.305 in	7.75 mm	Audio Control Instrumentation	85 %	6	Braid	UL Style 2464	20 AWG	300 V	Chrome	Poly-Vinyl Chloride (PVC)			28	7	-20 C	80 C	Copper Tinned	Multi-Conductor	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 8.27

General part information

6 Conductor Multi-Conductor Cable Chrome 20 AWG Braid 500.0' (152.4m)
