Q-2604Z000M018i

Active

Amphenol Custom Cable

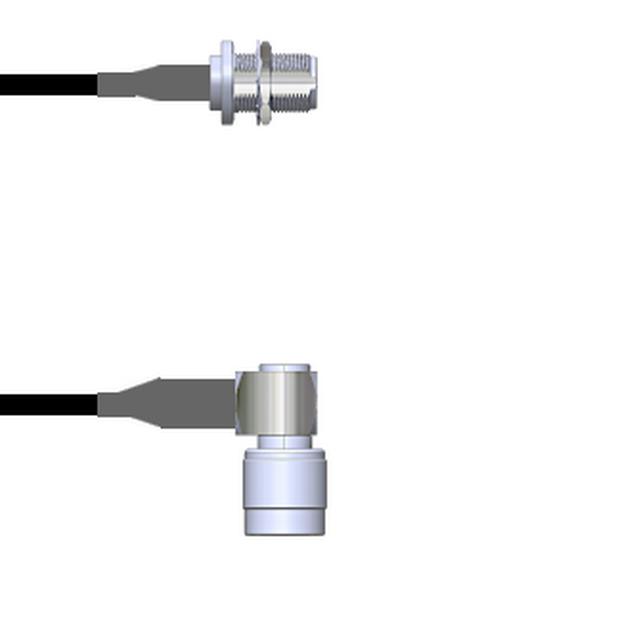

CBL ASSY NTYPE-TNC JACK-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2604Z000M018i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2604Z000M018i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms

Q-2604Z0 Series

Part	2nd Contact Gender	Color	Cable Type	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector	Features	Overall Impedance	1st Connector	1st Connector Mounting Feature	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2604Z000M024i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	24 "	609.6 mm	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2604Z000M036i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	36 in	91.44 cm	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2604Z000M018i	Male	Black	LMR 240	Female	Free Hanging (In-Line)			6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2604Z000M108i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	108 in	2.7 m	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut			9 ft
Amphenol Custom Cable Q-2604Z000M0.5M	Male	Black	LMR 240	Female	Free Hanging (In-Line)	19.69 "	50 cm	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2604Z000M072i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	72 in	1.8 m	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut			6 ft
Amphenol Custom Cable Q-2604Z000M084i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	84 in	2.1 m	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut			7 ft
Amphenol Custom Cable Q-2604Z000M.75M	Male	Black	LMR 240	Female	Free Hanging (In-Line)	29.53 "	750 mm	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2604Z000M012i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	12 "	304.8 mm	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2604Z000M060i	Male	Black	LMR 240	Female	Free Hanging (In-Line)	5 '	1.5 m	6000 MHz	Panel Mount	TNC Plug Right Angle	Shielded	50 Ohms	N-Type Jack	Bulkhead - Front Side Nut			5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 113.54
		25	$ 111.38
		50	$ 109.21
		100	$ 107.05
		250	$ 104.89

Description

General part information

Q-2604Z0 Series

Cable Assembly Coaxial N-Type to TNC LMR 240 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
