2-796608-1
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 9CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-796608-1
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 9CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-796608-1 | 796608 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Color | Black | Black |
| Current Rating (Amps) | 25 A | 25 A |
| Features | - | Flange |
| Material - Insulation | Thermoplastic | Thermoplastic, Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Chassis, Panel |
| Number of Circuits | - | 5 - 30 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 9 | 5 - 30 |
| Number of Wire Entries | - | 22 - 27 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate | Zinc, Clear Chromate |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 - 17.5 AWG |
796608 Series
CONN BARRIER STRP 27CIRC 0.375"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Operating Temperature | Number of Rows | Bottom Termination | Number of Wire Entries [custom] | Terminal Block Type | Top Termination | Barrier Type | Terminal Screw Material | Mounting Type | Material Flammability Rating | Pitch [x] | Pitch [x] | Terminal Screw Finish | Voltage Rating | Current Rating (Amps) | Color | Material - Insulation | Number of Wire Entries | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-796608-2 | 12 AWG | 22 AWG | 27 | 105 C | 1 | Wire Wrap | 27 | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic | ||
TE Connectivity AMP Connectors 796608-9 | 17.5 AWG | 22 AWG | 16 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Chassis, Panel, Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Nylon, Polyamide (PA) | 16 | Flange | |
TE Connectivity AMP Connectors 3-796608-5 | 12 AWG | 22 AWG | 30 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic | 30 | ||
TE Connectivity AMP Connectors 1-796608-6 | 17.5 AWG | 22 AWG | 25 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Chassis, Panel, Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Nylon, Polyamide (PA) | 25 | Flange | |
TE Connectivity AMP Connectors 1-796608-2 | 17.5 AWG | 22 AWG | 19 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Chassis, Panel, Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Nylon, Polyamide (PA) | 19 | Flange | |
TE Connectivity AMP Connectors 796608-7 | 17.5 AWG | 22 AWG | 14 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Chassis, Panel, Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Nylon, Polyamide (PA) | 14 | Flange | |
TE Connectivity AMP Connectors 3-796608-3 | 12 AWG | 22 AWG | 28 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic | 28 | ||
TE Connectivity AMP Connectors 2-796608-0 | 12 AWG | 22 AWG | 5 | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic | 5 | ||
TE Connectivity AMP Connectors 2-796608-1 | 12 AWG | 22 AWG | 105 C | 1 | Wire Wrap | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic | 9 | |||
TE Connectivity AMP Connectors 2-796608-8 | 12 AWG | 22 AWG | 22 | 105 C | 1 | Wire Wrap | 22 | Barrier Block | Screws with Captive Plate | 3 Wall (Tri) | Steel | Through Hole | UL94 V-0 | 9.53 mm | 0.375 in | Clear Chromate, Zinc | 300 VDC | 25 A | Black | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.95 | |
| 10 | $ 4.32 | |||
| 25 | $ 4.20 | |||
| 80 | $ 4.09 | |||
| 160 | $ 4.00 | |||
Description
General part information
796608 Series

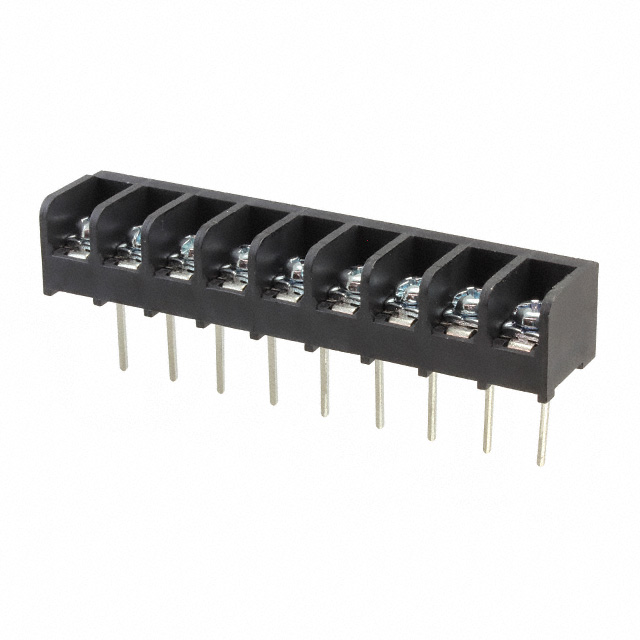

9 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
