2-796608-0

Active

TE Connectivity AMP Connectors

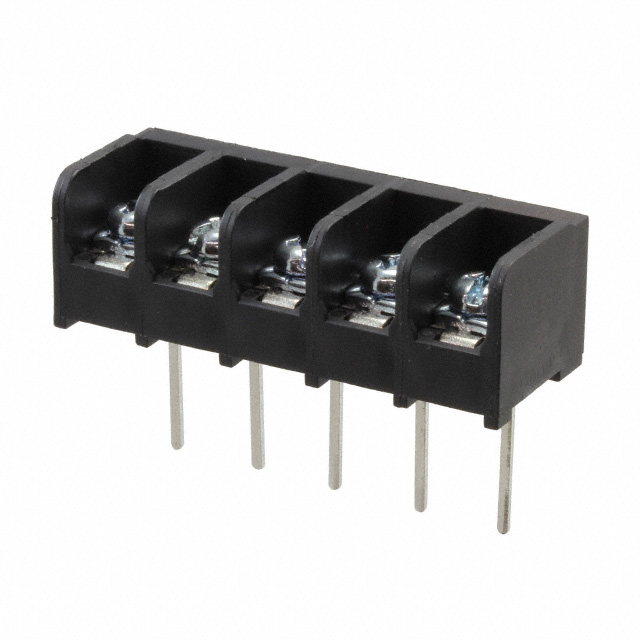

CONN BARRIER STRIP 5CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-796608-0

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 5CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.25
		10	$ 2.89
		25	$ 2.88
		50	$ 2.85
		125	$ 2.57
		250	$ 2.55
		500	$ 2.36
		1000	$ 2.11
		5000	$ 1.83

Description

General part information

796608 Series

5 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Specification	2-796608-0	796608 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Wire Wrap	Wire Wrap
Color	Black	Black
Current Rating (Amps)	25 A	25 A
Features	-	Flange
Material - Insulation	Thermoplastic	Thermoplastic, Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Chassis, Panel
Number of Circuits	5	5 - 30
Number of Rows	1	1
Number of Wire Entries	5	5 - 30
Number of Wire Entries	-	22 - 27
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate	Zinc, Clear Chromate
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 - 17.5 AWG

Part

Wire Gauge [Min]

Wire Gauge [Max]

Number of Circuits

Operating Temperature

Number of Rows

Bottom Termination

Number of Wire Entries [custom]

Terminal Block Type

Top Termination

Barrier Type

Terminal Screw Material

Mounting Type

Material Flammability Rating

Pitch [x]

Terminal Screw Finish

Voltage Rating

Current Rating (Amps)

Color

Material - Insulation

Number of Wire Entries

Features

TE Connectivity AMP Connectors

3-796608-2

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

TE Connectivity AMP Connectors

796608-9

17.5 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Chassis, Panel, Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Nylon, Polyamide (PA)

Flange

TE Connectivity AMP Connectors

3-796608-5

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

TE Connectivity AMP Connectors

1-796608-6

17.5 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Chassis, Panel, Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Nylon, Polyamide (PA)

Flange

TE Connectivity AMP Connectors

1-796608-2

17.5 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Chassis, Panel, Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Nylon, Polyamide (PA)

Flange

TE Connectivity AMP Connectors

796608-7

17.5 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Chassis, Panel, Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Nylon, Polyamide (PA)

Flange

TE Connectivity AMP Connectors

3-796608-3

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

TE Connectivity AMP Connectors

2-796608-0

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

TE Connectivity AMP Connectors

2-796608-1

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

TE Connectivity AMP Connectors

2-796608-8

12 AWG

22 AWG

105 C

Wire Wrap

Barrier Block

Screws with Captive Plate

3 Wall (Tri)

Steel

Through Hole

UL94 V-0

9.53 mm

0.375 in

Clear Chromate, Zinc

300 VDC

25 A

Black

Thermoplastic

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Operating Temperature	Number of Rows	Bottom Termination	Number of Wire Entries [custom]	Terminal Block Type	Top Termination	Barrier Type	Terminal Screw Material	Mounting Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Terminal Screw Finish	Voltage Rating	Current Rating (Amps)	Color	Material - Insulation	Number of Wire Entries	Features
TE Connectivity AMP Connectors 3-796608-2	12 AWG	22 AWG	27	105 C	1	Wire Wrap	27	Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic
TE Connectivity AMP Connectors 796608-9	17.5 AWG	22 AWG	16	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Chassis, Panel, Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Nylon, Polyamide (PA)	16	Flange
TE Connectivity AMP Connectors 3-796608-5	12 AWG	22 AWG	30	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic	30
TE Connectivity AMP Connectors 1-796608-6	17.5 AWG	22 AWG	25	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Chassis, Panel, Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Nylon, Polyamide (PA)	25	Flange
TE Connectivity AMP Connectors 1-796608-2	17.5 AWG	22 AWG	19	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Chassis, Panel, Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Nylon, Polyamide (PA)	19	Flange
TE Connectivity AMP Connectors 796608-7	17.5 AWG	22 AWG	14	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Chassis, Panel, Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Nylon, Polyamide (PA)	14	Flange
TE Connectivity AMP Connectors 3-796608-3	12 AWG	22 AWG	28	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic	28
TE Connectivity AMP Connectors 2-796608-0	12 AWG	22 AWG	5	105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic	5
TE Connectivity AMP Connectors 2-796608-1	12 AWG	22 AWG		105 C	1	Wire Wrap		Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic	9
TE Connectivity AMP Connectors 2-796608-8	12 AWG	22 AWG	22	105 C	1	Wire Wrap	22	Barrier Block	Screws with Captive Plate	3 Wall (Tri)	Steel	Through Hole	UL94 V-0	9.53 mm	0.375 in	Clear Chromate, Zinc	300 VDC	25 A	Black	Thermoplastic
