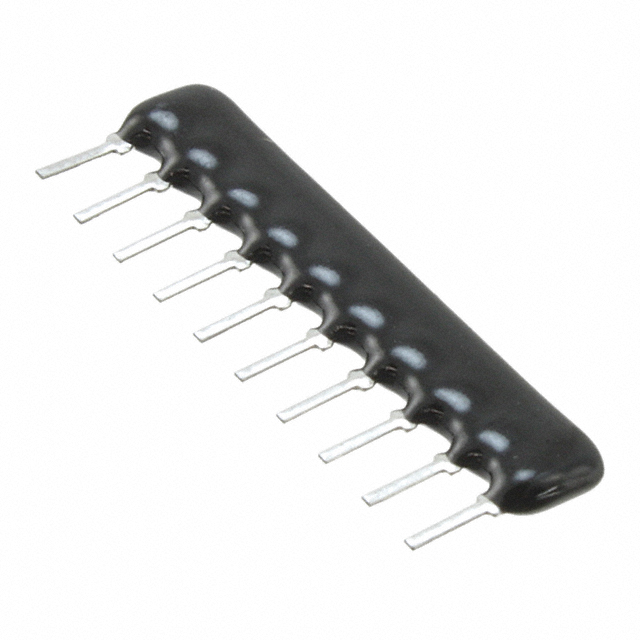

L101S473LF

Unknown

TT Electronics/IRC

RES ARRAY 9 RES 47K OHM 10SIP

Search across all available documentation for this part.

Unknown

TT Electronics/IRC

RES ARRAY 9 RES 47K OHM 10SIP

Technical Specifications

Parameters and characteristics for this part

RES ARRAY 9 RES 47K OHM 10SIP

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Circuit Type	Mounting Type	Resistor-Ratio-Drift	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Number of Resistors	Number of Pins	Resistance (Ohms)	Temperature Coefficient	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Power Per Element
TT Electronics/IRC L101S473LF	1 in	25.4 mm	2.5 mm	0.098 in	Bussed	Through Hole	50 ppm/°C	5.08 mm	0.2 "	10-SIP	9	10	47k	100 ppm/°C	10-SIP	-55 °C	125 °C	2 %	125 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.07

General part information

47k Ohm ±2% 125mW Power Per Element Bussed 9 Resistor Network/Array ±100ppm/°C 10-SIP
