S28AW30

Active

NKK Switches

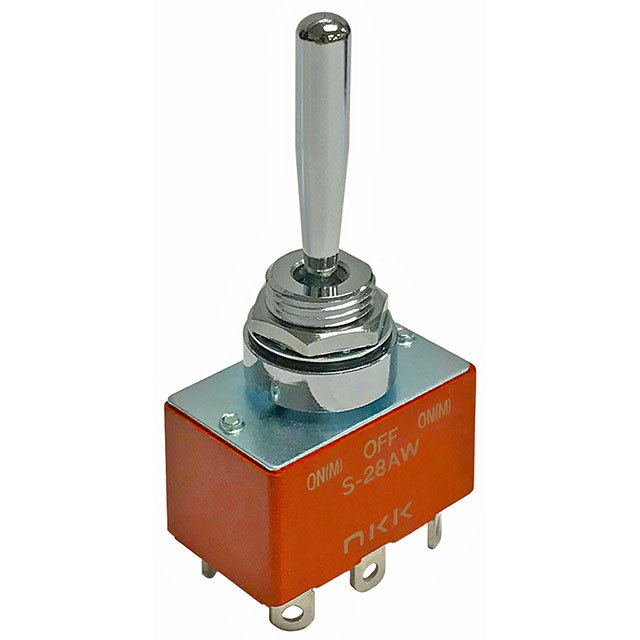

SWITCH TOGGLE DPDT 15A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S28AW30

Actuator Length [x]	30 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Electrical Life	Bushing Thread	Bushing Thread	Actuator Material	Ingress Protection	Actuator Length [x]	Termination Style	Circuit	Voltage Rating - DC	Illumination	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - AC
NKK Switches S28AW30	70 °C	-30 ░C	Mom-Off-Mom	25000 Steps	M12	1 x 1	Brass Chrome Plated	IP67 - Dust Tight Waterproof	30 mm	Solder Lug	DPDT	30 V	Non-Illuminated	Standard Round	15 A 20 A	12.5 mm	125 V
NKK Switches S28AW45	70 °C	-30 ░C	Mom-Off-Mom	25000 Steps	M12	1 x 1	Brass Chrome Plated	IP67 - Dust Tight Waterproof	45 mm	Solder Lug	DPDT	30 V	Non-Illuminated	Standard Round	15 A 20 A	12.5 mm	125 V
NKK Switches S28AWF	70 °C	-30 ░C	Mom-Off-Mom	25000 Steps	M12	1 x 1	Brass Chrome Plated	IP67 - Dust Tight Waterproof	17.5 mm	Quick Connect - 0.250" (6.3mm)	DPDT	30 V	Non-Illuminated	Standard Round	15 A 20 A	12.5 mm	125 V
