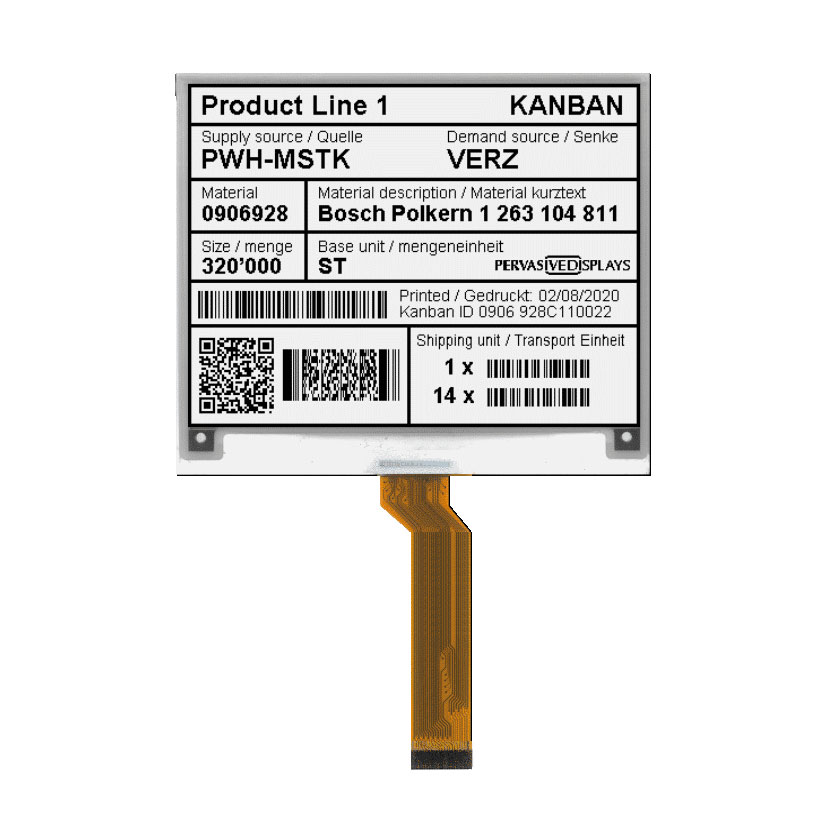

E2417PS0D1

Active

Pervasive Displays

4.2" EPD, A-MB, W.ITC, FAST UPDA

Search across all available documentation for this part.

Active

Pervasive Displays

4.2" EPD, A-MB, W.ITC, FAST UPDA

Technical Specifications

Parameters and characteristics for this part

Specification	E2417PS0D1

Backlight	Without Backlight
Diagonal Screen Size	106.68 mm
Diagonal Screen Size	4.2 in
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.21 mm
Dot Pitch [y]	0.21 mm
Dot Pixels [x]	400
Dot Pixels [y]	300
Graphics Color	White, Black
Interface	SPI
Viewing Area [x]	84.8 mm
Viewing Area [y]	63.6 mm

Part	Interface	Display Type	Dot Pixels [x]	Dot Pixels [y]	Backlight	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Background Color	Display Mode
Pervasive Displays E2417PS0D1	SPI	TFT - Electronic Paper Display (EPD)	400	300	Without Backlight	0.21 mm	0.21 mm	Black White	106.68 mm	4.2 in	63.6 mm	84.8 mm
Pervasive Displays E2417ES053	SPI	TFT - Electronic Paper Display (EPD)	400	300	Without Backlight			Black Red	106.68 mm	4.2 in	63.6 mm	84.8 mm	White	Reflective
Pervasive Displays E2417CS051	SPI	TFT - Electronic Paper Display (EPD)	400	300	Without Backlight	0.21 mm	0.21 mm	Black	106.68 mm	4.2 in	63.6 mm	84.8 mm	White	Reflective
Pervasive Displays E2417FS052	SPI	TFT - Electronic Paper Display (EPD)	400	300	Without Backlight	0.21 mm	0.21 mm	Black Red White	106.68 mm	4.2 in	63.6 mm	84.8 mm		Reflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.72

General part information

Graphic LCD Display Module Black, White TFT - Electronic Paper Display (EPD) SPI 4.2" (106.68mm) 400 x 300

Technical documentation and resources
