MX34R08HF4T

Active

JAE Electronics

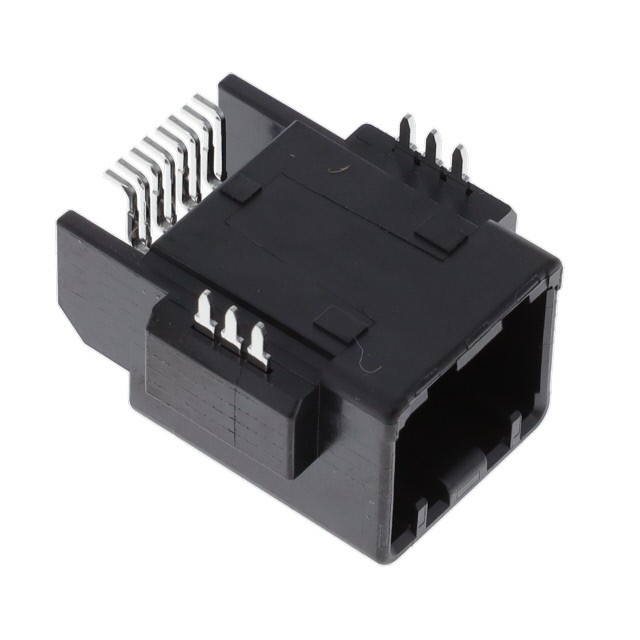

CONN HEADER SMD R/A 8POS 2.2MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 8POS 2.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX34R08HF4T

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	13.8 mm
Insulation Height	0.543 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Style	Contact Material	Insulation Height	Insulation Height	Insulation Material	Connector Type	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Features	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Positions	Termination	Number of Rows	Current Rating (Amps)	Mounting Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating
JAE Electronics MX34R08HF4T	Board to Cable/Wire	Copper Alloy	13.8 mm	0.543 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	All	Tin	Black	Automotive	85 °C	-40 °C	Male Pin	Solder Retention	3 mm	0.118 in	Shrouded - 4 Wall	8	Solder	2	3 A	Surface Mount Right Angle	7.7 mm	0.303 in	Locking Ramp	Square	0.087 in	2.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 8 position 0.087" (2.20mm)
