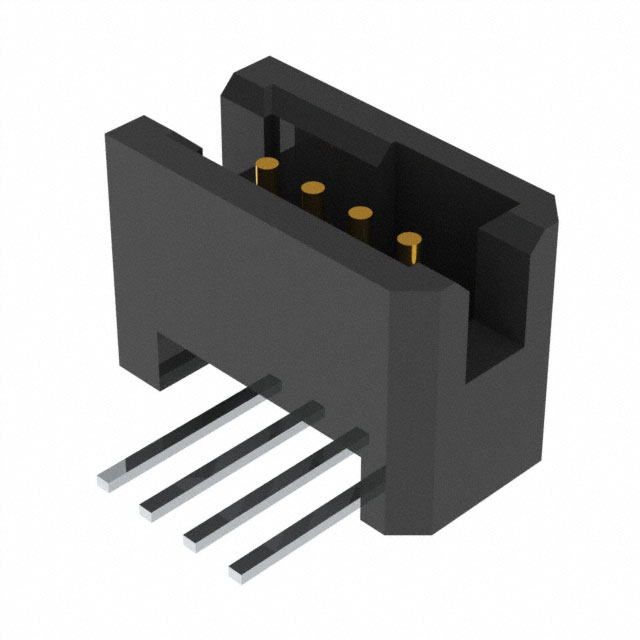

TFM-104-01-L-S-RA

Active

Samtec Inc.

CONN HEADER R/A 4POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SFM Series Other Related Documents 03 +2

TFM-104-01-L-S-RA

Active

Samtec Inc.

CONN HEADER R/A 4POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet SFM Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-104-01-L-S-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.137 in
Contact Length - Mating	3.48 mm
Contact Length - Post	0.084 in
Contact Length - Post	2.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.45 mm
Insulation Height	0.175 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-104 Series

Part	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Style	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Termination	Fastening Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Type	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Material	Shrouding	Voltage Rating	Contact Shape	Insulation Material	Number of Positions	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Features	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TFM-104-01-STL-D-RA	0.075 in	1.91 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole Right Angle	Solder	Push-Pull	2	3.61 mm	0.142 in	-55 °C	125 °C	30 Áin	0.76 Ám	2.9 A	Male Pin	0.225 in	5.72 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	8	Header	UL94 V-0	0.05 in	1.27 mm
Samtec Inc. TFM-104-01-L-S-WT	0.078 in		Black	Tin	All	Board to Board Cable			Through Hole	Solder	Push-Pull	1	3.33 mm	0.131 in	-55 °C	125 °C	15 µin	0.38 µm	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm	1.98 mm	Solder Retention
Samtec Inc. TFM-104-01-F-D	0.078 in		Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole	Solder	Push-Pull	2	3.33 mm	0.131 in	-55 °C	125 °C	3 µin	0.076 µm	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	8	Header	UL94 V-0	0.05 in	1.27 mm	1.98 mm
Samtec Inc. TFM-104-01-L-S-RA		2.13 mm	Black	Tin	All	Board to Board Cable			Through Hole Right Angle	Solder	Push-Pull	1	3.48 mm	0.137 in	-55 °C	125 °C	10 çin	0.25 çm	2.9 A	Male Pin	0.175 in	4.45 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm			0.084 in
Samtec Inc. TFM-104-02-L-S			Black	Tin	All	Board to Board Cable			Surface Mount	Solder	Push-Pull	1	3.33 mm	0.131 in	-55 °C	125 °C	15 µin	0.38 µm	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm
Samtec Inc. TFM-104-01-L-D-WT	0.078 in		Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole	Solder	Push-Pull	2	3.33 mm	0.131 in	-55 °C	125 °C	15 µin	0.38 µm	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	8	Header	UL94 V-0	0.05 in	1.27 mm	1.98 mm	Solder Retention
Samtec Inc. TFM-104-02-L-S-A-K			Black	Tin	All	Board to Board Cable			Surface Mount	Solder	Push-Pull	1	3.33 mm	0.131 in	-55 °C	125 °C	15 µin	0.38 µm	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm		Board Guide Pick and Place
Samtec Inc. TFM-104-02-H-S-WT-K-TR			Black	Gold	All	Board to Board Cable			Surface Mount	Solder	Push-Pull	1	3.33 mm	0.131 in	-55 °C	125 °C	30 Áin	0.76 Ám	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm		Pick and Place Solder Retention		3 µin	0.076 µm
Samtec Inc. TFM-104-02-S-S-K-TR			Black	Tin	All	Board to Board Cable			Surface Mount	Solder	Push-Pull	1	3.33 mm	0.131 in	-55 °C	125 °C	30 Áin	0.76 Ám	2.9 A	Male Pin	0.22 in	5.6 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	4	Header	UL94 V-0	0.05 in	1.27 mm		Pick and Place
Samtec Inc. TFM-104-01-F-D-RE2-WT	0.11 in	2.79 mm	Black	Tin	All	Board to Board Cable	0.05 in	1.27 mm	Through Hole Right Angle	Solder	Push-Pull	2	3.53 mm	0.139 in	-55 °C	125 °C	3 µin	0.076 µm	2.9 A	Male Pin	0.24 in	6.1 mm	Gold	Phosphor Bronze	Shrouded - 4 Wall	275 VAC	Square	Liquid Crystal Polymer (LCP)	8	Elevated Header	UL94 V-0	0.05 in	1.27 mm		Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.12
		50	$ 1.73
		100	$ 1.47
		500	$ 1.31
		1000	$ 1.23
