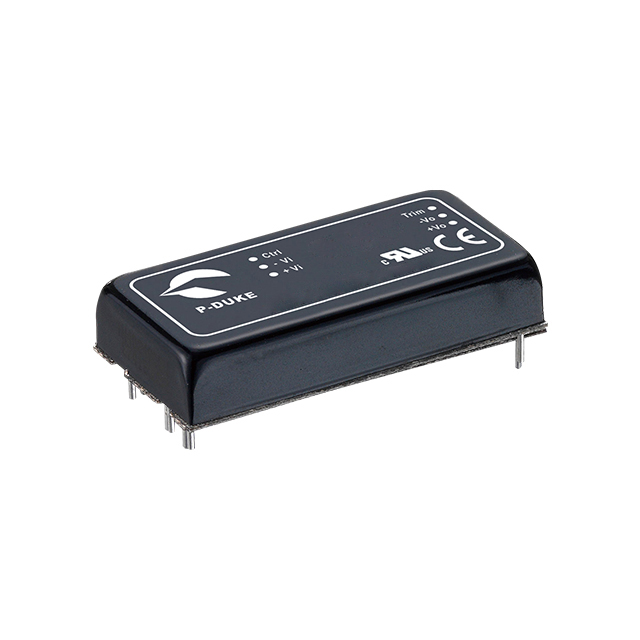

FED60-24S12W

Active

P-DUKE Technology

DC DC CONVERTER 12V 60W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	FED60-24S12W

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	5 A
Efficiency	92 %
Features	Standby Output, Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	60 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1, 62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

DC DC CONVERTER 12V 60W

Part	Features	Voltage - Isolation	Efficiency	Voltage - Input (Min) [Min]	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Applications	Control Features	Mounting Type	Package / Case	Approval Agency	Standard Number
P-DUKE Technology FED60-24S12W	Adjustable Output, Remote On/Off, Standby Output	1.6 kV	92 %	9 V	Isolated Module	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	-40 °C	105 C	12 V	5 A	60 W	ITE (Commercial)	Active High, Enable	Through Hole	6-DIP Module	CB, CE, cURus	60950-1, 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 5A 9V - 36V Input
