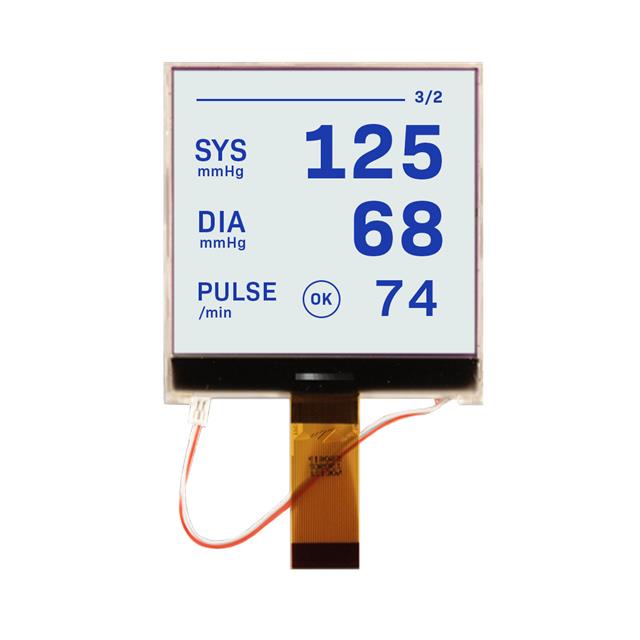

NHD-C128128BZ-FSW-GBW
ActiveNewhaven Display Intl
LCD COG GRAPH 128X128 WH TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-C128128BZ-FSW-GBW
ActiveNewhaven Display Intl
LCD COG GRAPH 128X128 WH TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-C128128BZ-FSW-GBW |
|---|---|
| Background Color | Gray |
| Backlight | LED - White |
| Controller Type | ST-7528 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.44 mm |
| Dot Pitch [y] | 0.44 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 128 |
| Dot Size [x] | 0.42 mm |
| Dot Size [y] | 0.42 mm |
| Graphics Color | Blue |
| Interface | Parallel, 8-Bit |
| Viewing Area [y] | 65.5 mm |
| Viewing Area [z] | 60.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.29 | |
| 5 | $ 29.41 | |||
| 10 | $ 27.54 | |||
| 50 | $ 25.97 | |||
| 100 | $ 24.96 | |||
Description
General part information
NHD-C128128 Series
Graphic LCD Display Module Transflective Blue (Gray - Inverted) STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 128
