28642.6

Active

Conta-Clip, Inc.

KES-GB 16/24 GR

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

KES-GB 16/24 GR

Technical Specifications

Parameters and characteristics for this part

Specification	28642.6

Bushing, Grommet Type	Grommet, Entry Plate
Color	Gray
For Use With/Related Products [Max]	16 AWG HD
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	4.409 "
Panel Cutout Dimensions [x]	112 mm
Panel Cutout Dimensions [y]	36 mm
Panel Cutout Dimensions [y]	1.417 "

Part	Color	Material Flammability Rating	Bushing, Grommet Type	For Use With/Related Products [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material
Conta-Clip, Inc. 28642.6	Gray	UL94 V-0	Grommet Entry Plate	16 AWG HD	36 mm	4.409 "	112 mm	1.417 "	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

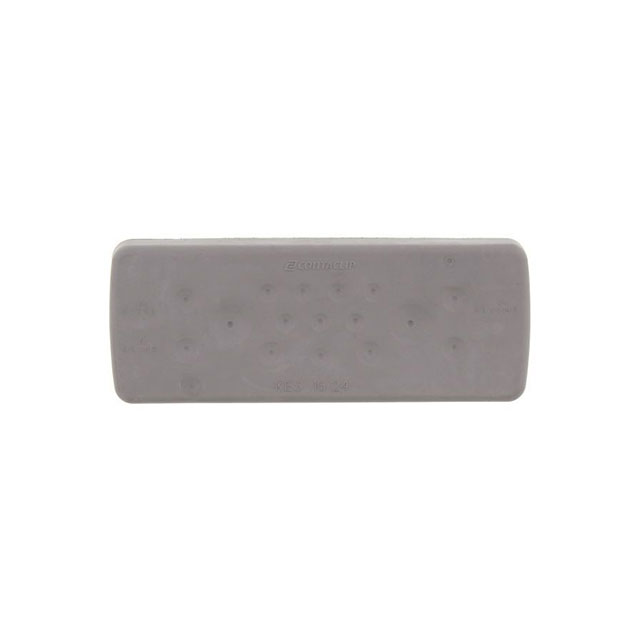

Rectangular - 4.409" L x 1.417" W (112.00mm x 36.00mm) Grommet, Entry Plate Gray
