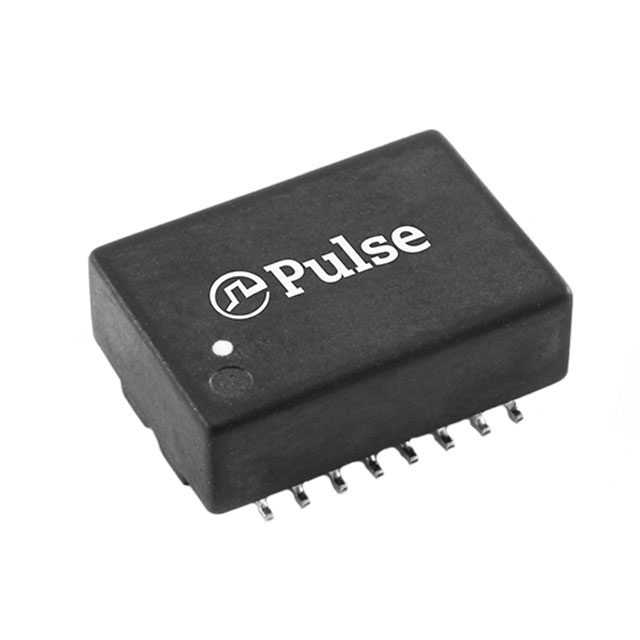

EX2024FNL

Active

Pulse Electronics

PULSE XFMR 1CT:2.5CT 1CT:1CT

Search across all available documentation for this part.

Active

Pulse Electronics

PULSE XFMR 1CT:2.5CT 1CT:1CT

Technical Specifications

Parameters and characteristics for this part

Specification	EX2024FNL

Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Inductance	200 µH, 35 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	0.498 "
Size / Dimension [x]	12.65 mm
Size / Dimension [y]	8.89 mm
Size / Dimension [y]	0.35 "
Turns Ratio - Primary:Secondary [x]	1 CT, 1 CT
Turns Ratio - Primary:Secondary [y]	2.5 CT, 1 CT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Turns Ratio - Primary:Secondary [x]	Turns Ratio - Primary:Secondary [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Transformer Type
Pulse Electronics EX2024FNL	85 °C	-40 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	8.89 mm	0.498 "	12.65 mm	0.35 "	35 µH 200 µH	5.08 mm	0.2 "
Pulse Electronics EX2024NL	70 °C	0 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	7.24 mm	0.5 in	12.7 mm	0.285 "	350 µH	5.33 mm	0.21 in	0.85 g	0.03 oz	Isolation and Data Interface (Encapsulated)
Pulse Electronics EX2024NLT	70 °C	0 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	7.24 mm	0.5 in	12.7 mm	0.285 "	350 µH	5.33 mm	0.21 in	0.85 g	0.03 oz	Isolation and Data Interface (Encapsulated)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

35µH, 200µH LAN 10 Base-T Pulse Transformer 1CT:2.5CT Transmitter, 1CT:1CT Receiver Surface Mount
