Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | EV-VNQ5E050K | EV-VNQ5E050K Series |
---|---|---|
- | - | |
Contents | Board(s) | Board(s) |
Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
Primary Attributes | 4-Channel (Quad) | 4-Channel (Quad) |
Supplied Contents | Board(s) | Board(s) |
Type | Power Management | Power Management |
Utilized IC / Part | VNQ5E050K | VNQ5E050K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 13.17 |
EV-VNQ5E050K Series
VNQ5E050K Evaluation Board
Part | Utilized IC / Part | Type | Contents | Function | Supplied Contents | Primary Attributes |
---|---|---|---|---|---|---|
STMicroelectronics EV-VNQ5E050K | VNQ5E050K | Power Management | Board(s) | High Side Driver (Internal FET) | Board(s) | 4-Channel (Quad) |
STMicroelectronics EV-VNQ5E050K |
Description
General part information
EV-VNQ5E050K Series

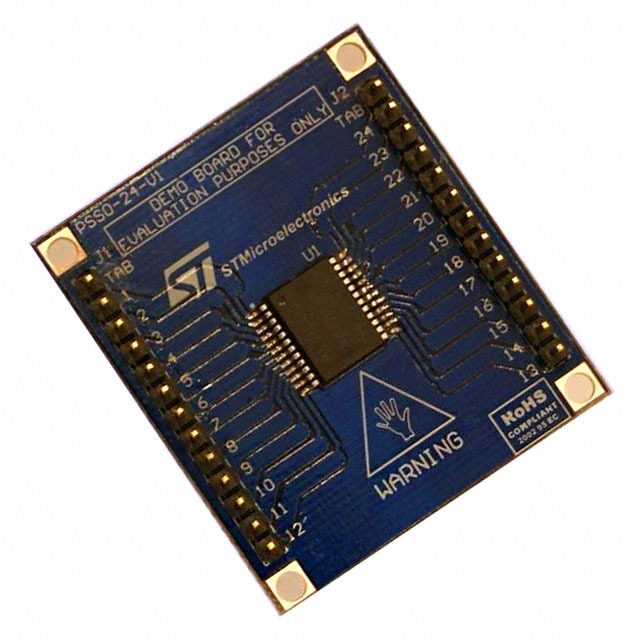

EV-VNQ5E050K provides you an easy way to connect ST’s surface mounted VIPower®drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VNQ5E050K-E high-side driver.
The VNQ5E050K-E is a quad channel high-side driver manufactured using ST proprietary VIPower M0-5 technology and housed in PowerSSO-24 package. The VNQ5E050K-E is designed to drive automotive grounded loads, providing protection, diagnostics and easy 3 V and 5 V CMOS-compatible interface with any microcontroller.
The device integrates advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shut-off with auto-restart and overvoltage active clamp. A dedicated active low digital status pin is associated with every output channel in order to provide enhanced diagnostic functions including fast detection of overload and short-circuit to ground, overtemperature indication, short-circuit to VCCdiagnosis and ON-state and OFF-state open-load detection.
