ANS-W-10A-16R

Active

OptiFuse

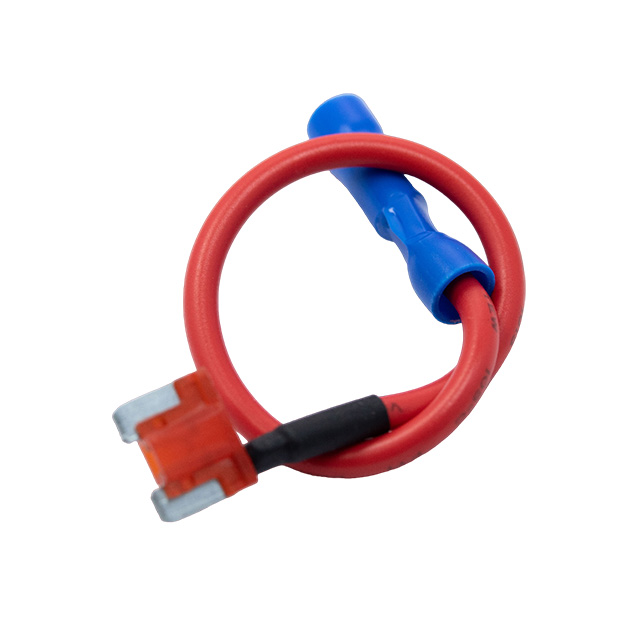

FUSE AUTO 10A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANS-W-10A-16R	ANS-W Series

Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Red	Blue, Red
Current Rating (Amps)	10 A	10 - 15 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature (Low Profile)	Blade, Miniature (Low Profile)
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.433 in	0.433 in
Size / Dimension [x]	11 mm	11 mm
Size / Dimension [y]	3.91 mm	3.91 mm
Size / Dimension [y]	0.154 in	0.154 in
Size / Dimension [z]	8.75 mm	8.75 mm
Size / Dimension [z]	0.344 in	0.344 in
Voltage Rating - DC	32 V	32 V

FUSE AUTO 15A 32VDC BLADE MINI

Part	Current Rating (Amps)	Response Time	Color	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Fuse Type	Voltage Rating - DC	Mounting Type
OptiFuse ANS-W-15A-16R	15 A	Fast Blow	Blue	Blade, Miniature (Low Profile)	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Automotive	32 V	Requires Holder
OptiFuse ANS-W-10A-16R	10 A	Fast Blow	Red	Blade, Miniature (Low Profile)	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Automotive	32 V	Requires Holder
OptiFuse ANS-W-10A-18R	10 A	Fast Blow	Red	Blade, Miniature (Low Profile)	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Automotive	32 V	Requires Holder
OptiFuse ANS-W-15A-18R	15 A	Fast Blow	Blue	Blade, Miniature (Low Profile)	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Automotive	32 V	Requires Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
