SEAM-50-11.0-S-08-2-A-K-TR

Active

Samtec Inc.

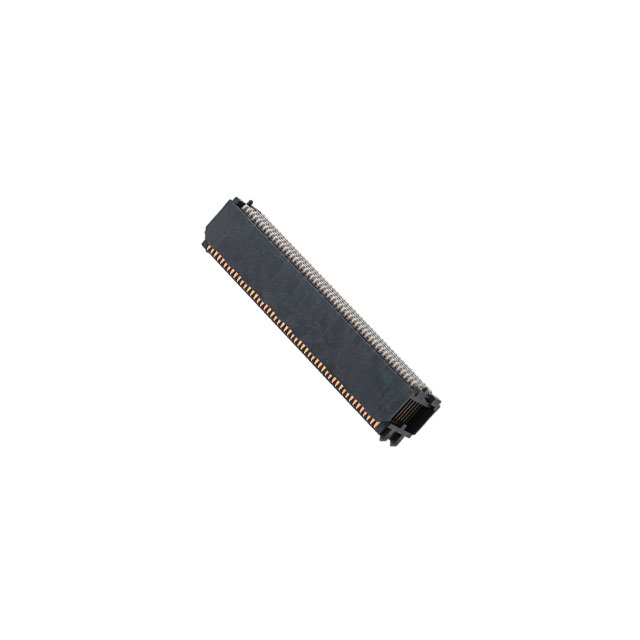

CONN OPEN PIN FIELD ARRAY HDR 400 POS 1.27MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SEAM-10-02.0-L-05-1-A-K-TR Datasheet 02 +2

SEAM-50-11.0-S-08-2-A-K-TR

Active

Samtec Inc.

CONN OPEN PIN FIELD ARRAY HDR 400 POS 1.27MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

DocumentsDatasheet SEAM-10-02.0-L-05-1-A-K-TR Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM-50-11.0-S-08-2-A-K-TR

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	0.575 in
Height Above Board	14.61 mm
Mated Stacking Heights	17 mm, 17.5 mm, 16 mm, 18.5 mm
Mounting Type	Surface Mount
Number of Positions	400
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAM-50 Series

...

Part	Mounting Type	Connector Type	Features	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights [z]
Samtec Inc. SEAM-50-07.0-S-10-2-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place	0.417 in	10.6 mm	0.05 in	1.27 mm	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	Gold	500	0.76 Ám	30 Áin	10
Samtec Inc. SEAM-50-11.0-S-04-1-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place			0.05 in	1.27 mm		Gold		0.76 Ám	30 Áin		0.575 in	14.61 mm
Samtec Inc. SEAM-50-01-L-08-1-RA-K-TR	Surface Mount Right Angle	High Density Array Male	Board Guide Pick and Place			0.05 in	1.27 mm		Gold	400	0.25 Ám	10 Áin	8	0.411 in	10.45 mm
Samtec Inc. SEAM-50-03.5-L-10-2-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place	0.24 "	6.1 mm	0.05 in	1.27 mm	8.5 mm 9.5 mm 10 mm 11 mm	Gold	500	0.25 Ám	10 Áin	10
Samtec Inc. SEAM-50-02.0-S-06-1-A-EP-K-TR	Surface Mount	High Density Array Male	Board Guide Mating Flange Pick and Place			0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	Gold	300	0.76 Ám	30 Áin	6	0.181 in	4.6 mm
Samtec Inc. SEAM-50-11.0-L-05-2-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place			0.05 in	1.27 mm		Gold	250	0.25 Ám	10 Áin	5	0.575 in	14.61 mm
Samtec Inc. SEAM-50-07.0-L-08-1-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place	0.417 in	10.6 mm	0.05 in	1.27 mm	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	Gold	400	0.25 Ám	10 Áin	8
Samtec Inc. SEAM-50-03.0-L-04-1-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place			0.05 in	1.27 mm		Gold		0.25 Ám	10 Áin				8 mm 9 mm 9.5 mm 10.5 mm 11 mm
Samtec Inc. SEAM-50-11.0-S-08-2-A-K-TR	Surface Mount	High Density Array Male	Board Guide Pick and Place			0.05 in	1.27 mm	16 mm 17 mm 17.5 mm 18.5 mm	Gold	400	0.76 Ám	30 Áin	8	0.575 in	14.61 mm
Samtec Inc. SEAM-50-01-S-10-2-RA	Surface Mount Right Angle	High Density Array Male	Board Guide			0.05 in	1.27 mm		Gold	500	0.76 Ám	30 Áin	10	0.511 in	12.99 mm
