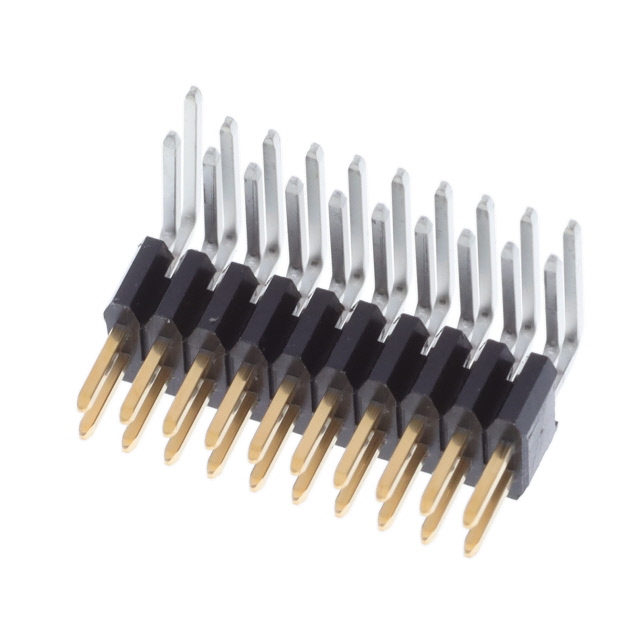

CONN HEADER R/A 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-629 Other Related Document 20021112 Datasheet +1

20021112-00020T4LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 20POS 1.27MM

Deep-Dive with AI

Documentsgs-12-629 Other Related Document 20021112 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021112-00020T4LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	125 VAC

20021112 Series

Part	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Fastening Type	Contact Shape	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 20021112-00024T1LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	24	Gold	Male Pin	3.05 mm	0.12 in	Flash	Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin
Amphenol ICC (FCI) 20021112-00030T1LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	30	Gold	Male Pin	3.05 mm	0.12 in	Flash	Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin
Amphenol ICC (FCI) 20021112-00014T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	14	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021112-00020T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	20	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021112-00006T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	6	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021112-00022T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	22 positions	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021112-00020T1LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	20	Gold	Male Pin	3.05 mm	0.12 in	Flash	Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin
Amphenol ICC (FCI) 20021112-00260T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	60	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder			Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm	0.091 in	2.3 mm
Amphenol ICC (FCI) 20021112-00014T1LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	14	Gold	Male Pin	3.05 mm	0.12 in	Flash	Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin
Amphenol ICC (FCI) 20021112-00018T4LF	1 A	0.05 in	1.27 mm	Thermoplastic	125 VAC	3.43 mm	0.135 "	Push-Pull	Square	All	Through Hole Right Angle	0.05 in	1.27 mm	18	Gold	Male Pin	3.05 mm	0.12 in		Copper Alloy	Tin	Solder	0.106 in	2.69 mm	Unshrouded	-55 °C	125 °C	UL94 V-0	2	Header	Black	1.27 µm	50 µin	10 çin	0.25 çm
