X9C303V8IZ

Active

Renesas Electronics Corporation

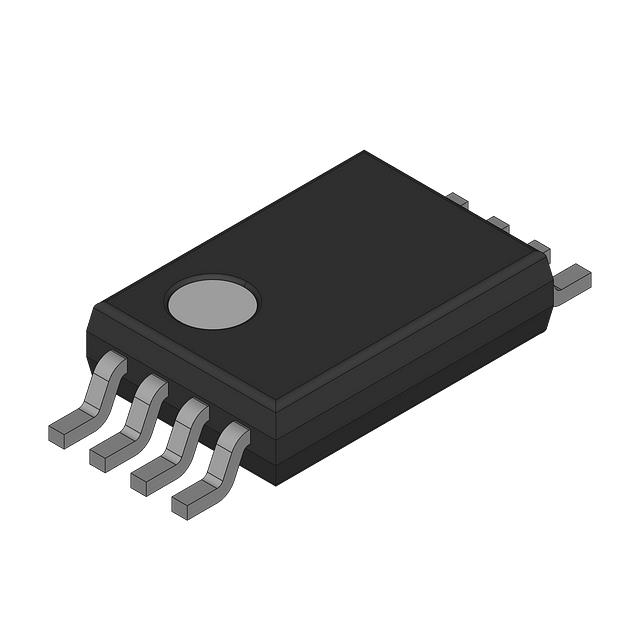

IC XDCP 100-TAP 32K EE 8-TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

X9C303V8IZ

Active

Renesas Electronics Corporation

IC XDCP 100-TAP 32K EE 8-TSSOP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X9C303V8IZ	X9C303 Series

Configuration	-	Potentiometer
Interface	-	Up/Down
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Circuits	1	1
Number of Taps	100	100
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	8-TSSOP	8-SOIC, 8-DIP, 8-TSSOP
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Package / Case [custom]	0.173 "	0.173 "
Package / Case [custom]	4.4 mm	4.4 mm
Resistance - Wiper (Ohms) (Typ)	-	40 Ohms
Resistance (Ohms)	32k	32k
Supplier Device Package	8-TSSOP	8-SOIC, 8-PDIP, 8-TSSOP
Taper	Logarithmic	Logarithmic
Temperature Coefficient (Typ)	400 ppm/°C	400 ppm/°C
Tolerance	-	15 %
Voltage - Supply	-	5 V
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

X9C303 Series

IC XDCP 100-TAP 32K EE 8-SOIC

Part	Memory Type	Resistance (Ohms)	Temperature Coefficient (Typ)	Package / Case	Package / Case [y]	Package / Case [x]	Number of Taps	Taper	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Circuits	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Wiper (Ohms) (Typ)	Configuration	Interface	Tolerance	Package / Case	Package / Case	Voltage - Supply	Package / Case [custom]	Package / Case [custom]
Renesas Electronics Corporation X9C303S8IZ	Non-Volatile	32k	400 ppm/°C	8-SOIC	3.9 mm	0.154 in	100	Logarithmic	4.5 V	5.5 V	1	Surface Mount	8-SOIC	85 °C	-40 °C
Renesas Electronics Corporation X9C303P	Non-Volatile	32k	400 ppm/°C	8-DIP			100	Logarithmic			1	Through Hole	8-PDIP	70 °C	0 °C	40 Ohms	Potentiometer	Up/Down	15 %	0.3 in	7.62 mm	5 V
Renesas Electronics Corporation X9C303S8Z	Non-Volatile	32k	400 ppm/°C	8-SOIC	3.9 mm	0.154 in	100	Logarithmic	4.5 V	5.5 V	1	Surface Mount	8-SOIC	70 °C	0 °C
Renesas Electronics Corporation X9C303S8ZT1	Non-Volatile	32k	400 ppm/°C	8-SOIC	3.9 mm	0.154 in	100	Logarithmic	4.5 V	5.5 V	1	Surface Mount	8-SOIC	70 °C	0 °C
Renesas Electronics Corporation X9C303S8	Non-Volatile	32k	400 ppm/°C	8-SOIC	3.9 mm	0.154 in	100	Logarithmic			1	Surface Mount	8-SOIC	70 °C	0 °C	40 Ohms	Potentiometer	Up/Down	15 %			5 V
Renesas Electronics Corporation X9C303S8I	Non-Volatile	32k	400 ppm/°C	8-SOIC	3.9 mm	0.154 in	100	Logarithmic			1	Surface Mount	8-SOIC	85 °C	-40 °C	40 Ohms	Potentiometer	Up/Down	15 %			5 V
Renesas Electronics Corporation X9C303V8IZ	Non-Volatile	32k	400 ppm/°C	8-TSSOP			100	Logarithmic	4.5 V	5.5 V	1	Surface Mount	8-TSSOP	85 °C	-40 °C								0.173 "	4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	74	$ 4.08

Description

General part information

X9C303 Series

Digital Potentiometer 32k Ohm 1 Circuit 100 Taps Interface 8-TSSOP

Documents

Technical documentation and resources

No documents available
