A-32-24H-1300

Active

Assmann WSW Components

1.27MM R/A DIP TYPE FEMALE CONNE

Search across all available documentation for this part.

Active

Assmann WSW Components

1.27MM R/A DIP TYPE FEMALE CONNE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A-32-24H-1300	A-32-24H Series

Board-Side Pitch	-	0.1 in
Board-Side Pitch	-	2.54 mm
Cable Pitch	-	0.1 in
Cable Pitch	-	2.54 mm
Cable Termination	-	IDC
Color	-	Red
Connector Type	Receptacle	Header, Receptacle
Contact Finish	-	Tin
Contact Length - Post	0.122 "	0.122 "
Contact Length - Post	3.1 mm	3.1 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Red	Red
Insulation Height	5.8 mm	5.8 mm
Insulation Height	0.228 in	0.228 in
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Kinked Pin, Solder	Kinked Pin, Solder

MICROMINIATURE

Part	Number of Rows	Cable Pitch	Cable Pitch	Board-Side Pitch	Board-Side Pitch	Connector Type	Contact Finish	Color	Number of Positions	Cable Termination	Number of Positions Loaded	Row Spacing [x]	Row Spacing	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Mounting Type	Fastening Type	Insulation Color	Contact Type
Assmann WSW Components A-32-24H-130L	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	Tin	Red	24	IDC	All	0.1 in	2.54 mm
Assmann WSW Components A-32-24H-1300	2					Receptacle			24		All			0.122 "	3.1 mm	0.1 in	2.54 mm	Phosphor Bronze	Polyester, Glass Filled	2.54 mm	0.1 in	UL94 V-0	5.8 mm	0.228 in	1.5 A	Kinked Pin, Solder	Through Hole, Right Angle	Push-Pull	Red	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2006	$ 1.15

General part information

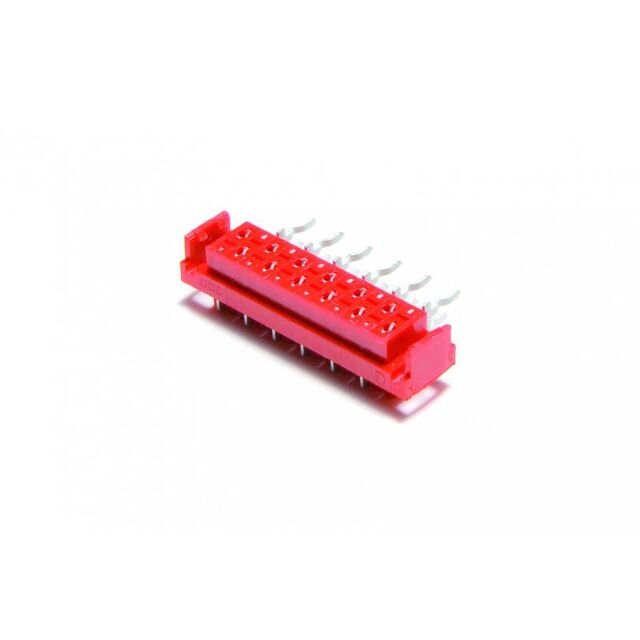

24 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
