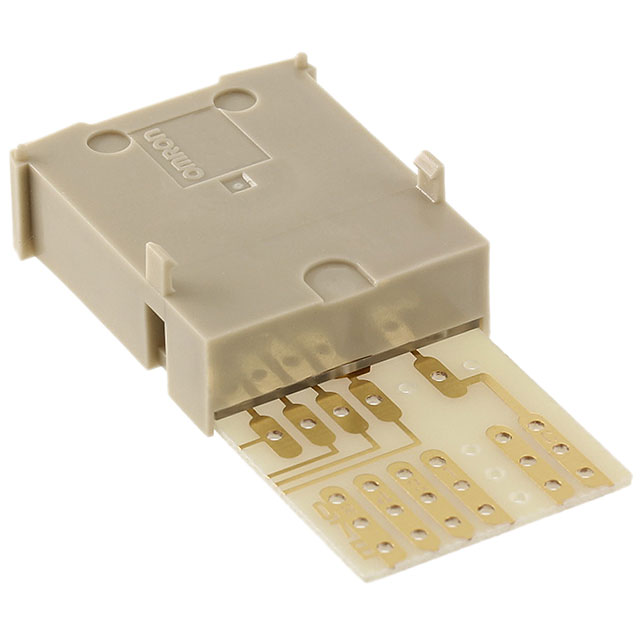

A7BS-207

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 50V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 50V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thumbwheel Switch BCD 0.1A @ 50VAC/28VDC Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A7BS-207	A7BS Series

Accessory Type	-	Stop Pin
Actuator Type	Pushwheel	Pushwheel
Color	Light Gray	Light Gray
Contact Rating @ Voltage [x]	28 VDC, 50 VAC, 0.1 A	0.1 - 50 VDC
Depth Behind Flange	43.5 mm	43.5 mm
Depth Behind Flange	-	32.5 mm
Display Characters - Height [z]	4.8 mm	3.2 - 4.8 mm
Display Characters - Height [z]	0.189 in	0.126 - 0.189 "
Electrical Life	50000 Cycles	50000 Cycles
End Caps	Sold Separately	Sold Separately
For Use With/Related Products	-	A7BS Series
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	Hexadecimal, BCD
Read Out	-	F, 9
Read Out	-	0, A
Read Out [Max]	9	9
Read Out [Min]	0	0
Section Width [x]	8 mm	8 mm
Section Width [x]	0.315 in	0.315 in
Termination Style	Card Edge/Solder Pad with Component Mounting	Solder Pad, Card Edge, Card Edge/Solder Pad with Component Mounting

SWITCH THUMB HEX 0.1A 50V

Part	Actuator Type	Color	End Caps	Display Characters - Height [z]	Display Characters - Height [z]	Mounting Type	Depth Behind Flange [z]	Number of Sections	Read Out [Max]	Read Out [Min]	Termination Style	Section Width [x]	Section Width [x]	Contact Rating @ Voltage [x]	Output Code	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Accessory Type	For Use With/Related Products	Read Out [Min]	Read Out [Max]	Depth Behind Flange
Omron Electronics Inc-EMC Div A7BS-254	Pushwheel	Light Gray	Sold Separately	0.126 "	3.2 mm	Panel Mount, Snap-In	32.5 mm	1	9, F	0, A	Card Edge, Solder Pad	8 mm	0.315 in	0.1 A, 28 VDC, 50 VAC	Hexadecimal	50000 Cycles	-10 °C	65 °C
Omron Electronics Inc-EMC Div A7BS-S																			Stop Pin	A7BS Series
Omron Electronics Inc-EMC Div A7BS-206	Pushwheel	Light Gray	Sold Separately	0.189 in	4.8 mm	Panel Mount, Snap-In	32.5 mm	1			Card Edge, Solder Pad	8 mm	0.315 in	0.1 A, 28 VDC, 50 VAC	BCD	50000 Cycles	-10 °C	65 °C			0	9
Omron Electronics Inc-EMC Div A7BS-207	Pushwheel	Light Gray	Sold Separately	0.189 in	4.8 mm	Panel Mount, Snap-In		1			Card Edge/Solder Pad with Component Mounting	8 mm	0.315 in	0.1 A, 28 VDC, 50 VAC	BCD	50000 Cycles	-10 °C	65 °C			0	9	43.5 mm
