EP913DS14
ActiveSwitchcraft Inc.

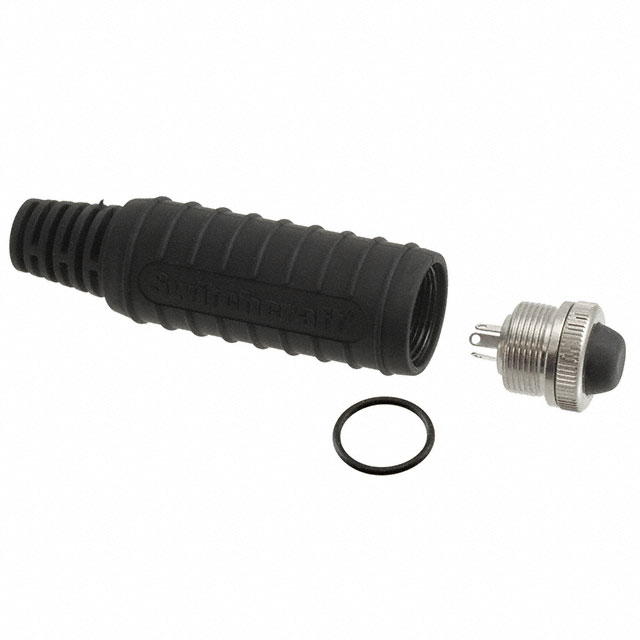

SWITCH PUSH BUTTON N.O./N.C. DPDT ROUND BUTTON MOMENTARY CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EP913DS14
ActiveSwitchcraft Inc.
SWITCH PUSH BUTTON N.O./N.C. DPDT ROUND BUTTON MOMENTARY CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EP913DS14 | EP913 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button |
| Circuit | SPDT (MBB) | SPDT, SPDT (MBB) |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 250 mA | 250 mA |
| Electrical Life | 20000 Steps | 20000 Steps |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 20000 Cycles | 20000 Cycles |
| Mounting Type | Free Hanging | Free Hanging |
| Switch Function | Off-Mom, On-Mom | Off-Mom, On-Mom |
| Termination Style | Solder Lug | Solder Lug |
| Type | Standard | Standard |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | 48 V | 48 V |
EP913 Series
SWITCH PUSH SPDT 0.25A 125V
| Part | Actuator Type | Actuator Marking | Termination Style | Voltage Rating - DC | Mounting Type | Color - Actuator/Cap | Current Rating (Amps) | Voltage Rating - AC | Circuit | Electrical Life | Type | Mechanical Life | Switch Function | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EP913S17 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913DS23 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT (MBB) | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913S23 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913S14 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913DS20 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT (MBB) | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913S20 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913DS14 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT (MBB) | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Switchcraft Inc. EP913DS17 | Button, Round | No Marking | Solder Lug | 48 V | Free Hanging | Black | 250 mA | 125 V | SPDT (MBB) | 20000 Steps | Standard | 20000 Cycles | Off-Mom, On-Mom | IP67 - Dust Tight, Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.51 | |
| 10 | $ 17.70 | |||
| 25 | $ 16.69 | |||
| 50 | $ 15.96 | |||
| 100 | $ 15.26 | |||
| 300 | $ 14.21 | |||
| 500 | $ 13.75 | |||
Description
General part information
EP913 Series
Pushbutton Switch SPDT (MBB) Standard Free Hanging
