ACA5-20RM-3-AC3-RL-C
ActiveMurata Power Solutions Inc.

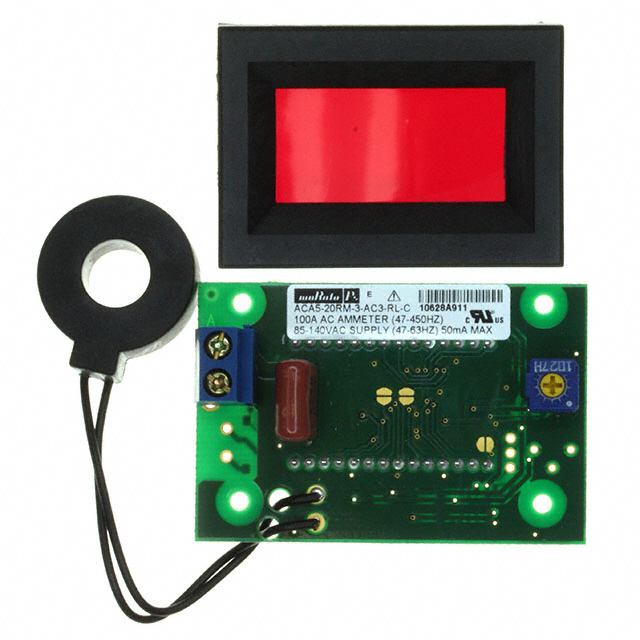

AMMETER 0-100A LED PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACA5-20RM-3-AC3-RL-C
ActiveMurata Power Solutions Inc.
AMMETER 0-100A LED PANEL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACA5-20RM-3-AC3-RL-C | ACA5-20RM Series |
|---|---|---|
| Display Characters - Height | 9.4 mm | 9.4 mm |
| Display Characters - Height | 0.37 in | 0.37 in |
| Display Type | LED - Red Characters | LED - Red Characters |
| Features | Built In Current Transformer (Secondary) | Built In Current Transformer (Secondary) |
| Measuring Range [Max] | 100 A | 100 - 500 A |
| Measuring Range [Min] | 0 A | 0 A |
| Measuring Type | Current | Current |
| Mounting Type | Panel Mount - Bezel | Panel Mount - Bezel |
| Number of Characters Per Row | 3.5 | 3.5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Panel Cutout Dimensions [x] | 33.93 mm | 33.93 mm |
| Panel Cutout Dimensions [y] | 21.29 mm | 21.29 mm |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | Ammeter | Ammeter |
| Voltage - Supply [Max] | 140 VAC | 140 - 264 VAC |
| Voltage - Supply [Min] | 85 VAC | 85 - 170 VAC |
| Weight | 0.069 lb | 0.069 lb |
| Weight | 31.3 g | 31.3 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ACA5-20RM Series
AMMETER 0-100A LED PANEL MOUNT
| Part | Weight | Weight | Measuring Type | Display Characters - Height | Display Characters - Height | Features | Display Type | Number of Characters Per Row | Measuring Range [Max] | Measuring Range [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. ACA5-20RM-3-AC3-RL-C | 0.069 lb | 31.3 g | Current | 9.4 mm | 0.37 in | Built In Current Transformer (Secondary) | LED - Red Characters | 3.5 | 100 A | 0 A | 60 °C | 0 °C | Ammeter | Screw Terminal | 33.93 mm | 21.29 mm | Panel Mount - Bezel | 85 VAC | 140 VAC |
Murata Power Solutions Inc. ACA5-20RM-9-AC4-RL-C | 0.069 lb | 31.3 g | Current | 9.4 mm | 0.37 in | Built In Current Transformer (Secondary) | LED - Red Characters | 3.5 | 500 A | 0 A | 60 °C | 0 °C | Ammeter | Screw Terminal | 33.93 mm | 21.29 mm | Panel Mount - Bezel | 170 VAC | 264 VAC |
Murata Power Solutions Inc. ACA5-20RM-9-AC3-RL-C | 0.069 lb | 31.3 g | Current | 9.4 mm | 0.37 in | Built In Current Transformer (Secondary) | LED - Red Characters | 3.5 | 500 A | 0 A | 60 °C | 0 °C | Ammeter | Screw Terminal | 33.93 mm | 21.29 mm | Panel Mount - Bezel | 85 VAC | 140 VAC |
Description
General part information
ACA5-20RM Series
Ammeter LED - Red Characters Display Panel Mount - Bezel
Documents
Technical documentation and resources
