JN1DS04FK2X

Active

JAE Electronics

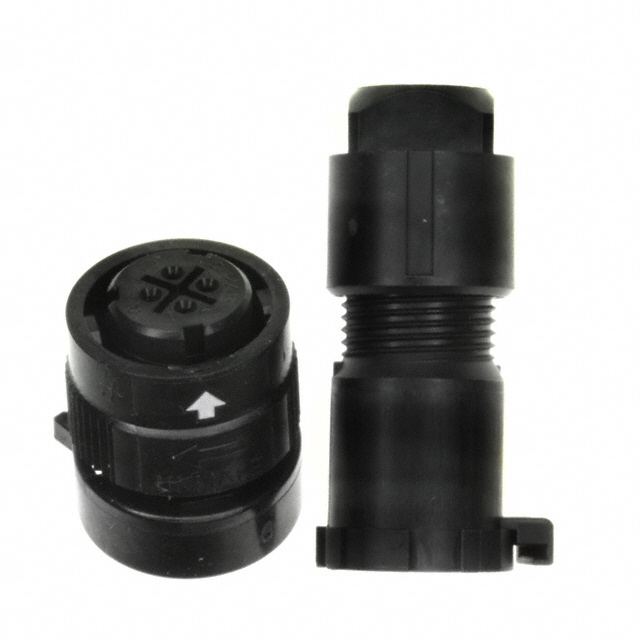

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJN1,JN2 Series Datasheet Datasheet

JN1DS04FK2X

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsJN1,JN2 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JN1DS04FK2X

Backshell Material, Plating	Synthetic Resin
Cable Opening [custom]	8 mm
Cable Opening [custom]	0.315 in, 0.256 in
Cable Opening [custom]	6.5 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	X
Primary Material	Plastic
Shell Material	Synthetic Resin
Shell Size - Insert	S

JN1DS04F Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Orientation	Fastening Type	Contact Finish - Mating	Insert Material	Backshell Material, Plating	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Shell Size - Insert	Ingress Protection	Contact Material	Color	Connector Type	Features	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
JAE Electronics JN1DS04FK2X	-20 C	125 °C	Free Hanging (In-Line)	5 A	X	Push-Twist	Silver	Synthetic Resin	Synthetic Resin	Plastic	8 mm	0.256 in 0.315 in	6.5 mm	Synthetic Resin	S	IP67 - Dust Tight Waterproof	Copper Alloy	Black	Female Sockets Plug	Backshell Coupling Nut	4
JAE Electronics JN1DS04FK1	-20 C	125 °C	Free Hanging (In-Line)	5 A	N	Push-Twist	Silver	Synthetic Resin	Synthetic Resin	Plastic				Synthetic Resin	S	IP67 - Dust Tight Waterproof	Copper Alloy	Black	Female Sockets Plug	Backshell Coupling Nut	4	0.224 in	0.287 in	7.3 mm	5.7 mm
JAE Electronics JN1DS04FK3	-20 C	125 °C	Free Hanging (In-Line)	5 A	N	Push-Twist	Silver	Synthetic Resin	Synthetic Resin	Plastic				Synthetic Resin	S	IP67 - Dust Tight Waterproof	Copper Alloy	Black	Female Sockets Plug	Backshell Coupling Nut	4					5 mm	3.5 mm	0.197 in	0.138 in
JAE Electronics JN1DS04FK2	-20 C	125 °C	Free Hanging (In-Line)	5 A	N	Push-Twist	Silver	Synthetic Resin	Synthetic Resin	Plastic	8 mm	0.256 in 0.315 in	6.5 mm	Synthetic Resin	S	IP67 - Dust Tight Waterproof	Copper Alloy	Black	Female Sockets Plug	Backshell Coupling Nut	4
JAE Electronics JN1DS04FKKX	-20 C	125 °C	Free Hanging (In-Line)	5 A	X	Push-Twist	Silver	Synthetic Resin	Synthetic Resin	Plastic				Synthetic Resin	S	IP67 - Dust Tight Waterproof	Copper Alloy	Black	Female Sockets Plug	Backshell Coupling Nut	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.35
		10	$ 18.00
		25	$ 16.29
		40	$ 15.50
		80	$ 14.42
		230	$ 12.97
		440	$ 12.19

Description

General part information

JN1DS04F Series

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

JN1,JN2 Series Datasheet

Datasheet
