N3428-6002RB

Active

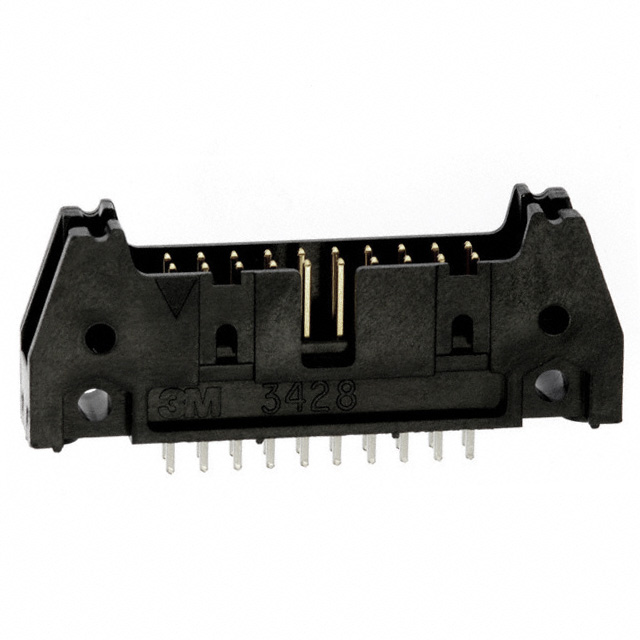

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +2

N3428-6002RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.86
		10	$ 3.50
		300	$ 2.70
		600	$ 2.62
		1200	$ 2.24
Newark	Each	1	$ 3.75
		10	$ 3.60
		25	$ 3.32
		50	$ 3.14
		100	$ 3.00
		250	$ 2.64
		500	$ 2.57
		1000	$ 2.18

Description

General part information

N3428 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.

Documents

Technical documentation and resources

Datasheet

Specification	N3428-6002RB	N3428 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Latch Lock/Eject Hooks, Short, Push-Pull, Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 0.695 in
Overall Contact Length	16.56 mm	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit, Wire Wrap

Part

Contact Type

Current Rating (Amps)

Pitch - Mating

Insulation Height

Contact Material

Fastening Type

Contact Finish - Mating

Number of Rows

Material Flammability Rating

Contact Length - Post

Insulation Color

Number of Positions Loaded

Insulation Material

Shrouding

Contact Finish Thickness - Post

Contact Finish Thickness - Mating

Connector Type

Contact Length - Mating

Contact Length - Mating [x]

Row Spacing - Mating [x]

Overall Contact Length [x]

Contact Shape

Mounting Type

Operating Temperature [Max]

Operating Temperature [Min]

Termination

Style

Contact Finish - Post

Number of Positions

Overall Contact Length

N3428-620T02RB

Male Pin

1.75 A

0.1 in

2.54 mm

17.27 mm

0.68 in

Copper Alloy

Latch Lock/Eject Hooks, Short

Gold

UL94 V-0

4.45 mm

0.175 in

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

300 µin

7.62 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

0.715 "

18.16 mm

Square

Through Hole

105 ░C

-55 °C

Press-Fit, Solder

Board to Board, Cable

Tin

N3428-1203RB

Male Pin

1.75 A

0.1 in

2.54 mm

7.87 mm

0.31 in

Copper Alloy

Latch Lock/Eject Hooks, Short

Gold

UL94 V-0

3.94 mm

0.155 "

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 3 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole, Right Angle

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin

N3428-6003RB

Male Pin

1.75 A

0.1 in

2.54 mm

17.27 mm

0.68 in

Copper Alloy

Push-Pull

Gold

UL94 V-0

3.94 mm

0.155 "

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin

0.695 in

17.65 mm

N3428-5503

Male Pin

1.75 A

0.1 in

2.54 mm

8.64 mm

0.34 in

Copper Alloy

Latch Lock/Eject Hooks, Short

Gold

UL94 V-0

3.94 mm

0.155 "

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole, Right Angle

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin-Lead

N3428-6002RB

Male Pin

1.75 A

0.1 in

2.54 mm

17.27 mm

0.68 in

Copper Alloy

Push-Pull

Gold

UL94 V-0

2.84 mm

0.112 in

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin

0.652 in

16.56 mm

N3428-6302RB

Male Pin

1.75 A

0.1 in

2.54 mm

17.27 mm

0.68 in

Copper Alloy

Latch Lock/Eject Hooks, Long

Gold

UL94 V-0

2.84 mm

0.112 in

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin

0.652 in

16.56 mm

N3428-3005EB

Male Pin

1.75 A

0.1 in

2.54 mm

8.64 mm

0.34 in

Phosphor Bronze

Push-Pull

Gold

UL94 V-0

15.49 mm

0.61 in

Black

All

Polybutylene Terephthalate (PBT), Glass Filled

Shrouded - 3 Wall

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole, Right Angle

105 ░C

-55 °C

Wire Wrap

Board to Board, Cable

N3428-L202RB

Male Pin

0.1 in

2.54 mm

16.76 mm

0.66 in

Copper Alloy

Latch Lock/Eject Hooks, Short

Gold

UL94 V-0

2.84 mm

0.112 in

Black

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Shrouded - 4 Wall

200 µin

5.08 µm

30 Áin

0.76 Ám

Header, Stackable (2)

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole, Right Angle

105 ░C

-55 °C

Solder

Board to Board, Cable

Tin

N3428-5305EB

Male Pin

0.1 in

2.54 mm

8.64 mm

0.34 in

Phosphor Bronze

Latch Lock/Eject Hooks, Long

Gold

UL94 V-0

15.49 mm

0.61 in

Black

All

Polybutylene Terephthalate (PBT), Glass Filled

Shrouded - 4 Wall

30 Áin

0.76 Ám

Header

6.1 mm

0.24 in

2.54 mm

0.1 in

Square

Through Hole, Right Angle

105 ░C

-55 °C

Wire Wrap

Board to Board, Cable

Part	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Material	Fastening Type	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Number of Positions Loaded	Insulation Material	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Shape	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Style	Contact Finish - Post	Number of Positions	Overall Contact Length	Overall Contact Length
3M N3428-620T02RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	4.45 mm	0.175 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	300 µin	7.62 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in	0.715 "	18.16 mm	Square	Through Hole	105 ░C	-55 °C	Press-Fit, Solder	Board to Board, Cable	Tin	20
3M N3428-1203RB	Male Pin	1.75 A	0.1 in	2.54 mm	7.87 mm	0.31 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 3 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20
3M N3428-6003RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Push-Pull	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.695 in	17.65 mm
3M N3428-5503	Male Pin	1.75 A	0.1 in	2.54 mm	8.64 mm	0.34 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin-Lead	20
3M N3428-6002RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Push-Pull	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.652 in	16.56 mm
3M N3428-6302RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Latch Lock/Eject Hooks, Long	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.652 in	16.56 mm
3M N3428-3005EB	Male Pin	1.75 A	0.1 in	2.54 mm	8.64 mm	0.34 in	Phosphor Bronze	Push-Pull	Gold	2	UL94 V-0	15.49 mm	0.61 in	Black	All	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 3 Wall			30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Wire Wrap	Board to Board, Cable		20
3M N3428-L202RB	Male Pin		0.1 in	2.54 mm	16.76 mm	0.66 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header, Stackable (2)	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20
3M N3428-5305EB	Male Pin		0.1 in	2.54 mm	8.64 mm	0.34 in	Phosphor Bronze	Latch Lock/Eject Hooks, Long	Gold	2	UL94 V-0	15.49 mm	0.61 in	Black	All	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall			30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Wire Wrap	Board to Board, Cable		20
