SML-LX1110USBC-BTR

Active

Lumex Opto/Components Inc.

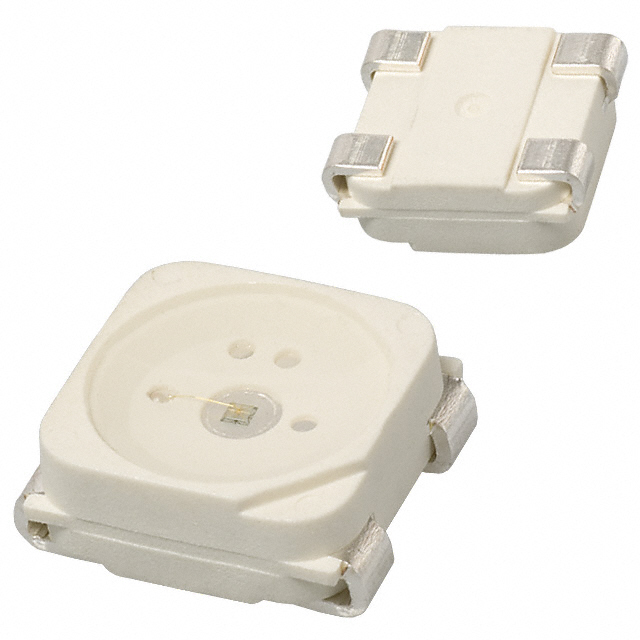

LED TITANBRITE BLUE 470NM 4PLCC

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLUE 470NM 4PLCC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX1110USBC-BTR	SML-LX1110 Series

Color	Blue	White, Blue, Yellow, Green
Current - Max [Max]	350 mA	350 - 500 mA
Current - Test	350 mA	350 mA
Flux @ 25°C, Current - Test	-	22 lm
Height - Seated (Max) [Max] [z]	4.4 mm	4.4 mm
Height - Seated (Max) [Max] [z]	0.173 in	0.173 in
Lumens/Watt @ Current - Test	6 lm/W	6 - 36 lm/W
Luminous Flux @ Current/Temperature	7 lm	7 - 42 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, J-Lead	4-SMD, J-Lead
Size / Dimension [x]	10 mm	10 mm
Size / Dimension [x]	0.394 "	0.394 "
Size / Dimension [y]	10 mm	10 mm
Size / Dimension [y]	0.394 in	0.394 in
Supplier Device Package	4-PLCC	4-PLCC
Thermal Resistance of Package	-	47 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.5 V	2 - 3.5 V
Wavelength	470 nm	470 - 620 nm

LED TITANBRITE ORG 620NM 4PLCC

Part	Package / Case	Luminous Flux @ Current/Temperature	Wavelength	Current - Test	Lumens/Watt @ Current - Test	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Flux @ 25°C, Current - Test	Color	Thermal Resistance of Package [diameter]
Lumex Opto/Components Inc. SML-LX1110SOC-BTR	4-SMD, J-Lead	11 lm	620 nm	350 mA	16 lm/W	Surface Mount	120 °	2 V	4-PLCC	4.4 mm	0.173 in	10 mm	0.394 in	10 mm	0.394 "	350 mA
Lumex Opto/Components Inc. SML-LX1110UWC-BTR	4-SMD, J-Lead			350 mA	18 lm/W	Surface Mount	120 °	3.5 V	4-PLCC	4.4 mm	0.173 in	10 mm	0.394 in	10 mm	0.394 "	500 mA	22 lm	White
Lumex Opto/Components Inc. SML-LX1110USBC-BTR	4-SMD, J-Lead	7 lm	470 nm	350 mA	6 lm/W	Surface Mount	120 °	3.5 V	4-PLCC	4.4 mm	0.173 in	10 mm	0.394 in	10 mm	0.394 "	350 mA		Blue
Lumex Opto/Components Inc. SML-LX1110SYC-BTR	4-SMD, J-Lead	21 lm	590 nm	350 mA	30 lm/W	Surface Mount	120 °	2 V	4-PLCC	4.4 mm	0.173 in	10 mm	0.394 in	10 mm	0.394 "	350 mA		Yellow
Lumex Opto/Components Inc. SML-LX1110UPGC-BTR	4-SMD, J-Lead	42 lm	525 nm	350 mA	36 lm/W	Surface Mount	120 °	3.3 V	4-PLCC	4.4 mm	0.173 in	10 mm	0.394 in	10 mm	0.394 "	350 mA		Green	47 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color TitanBrite™ Blue 470nm (Typ) 4-SMD, J-Lead
