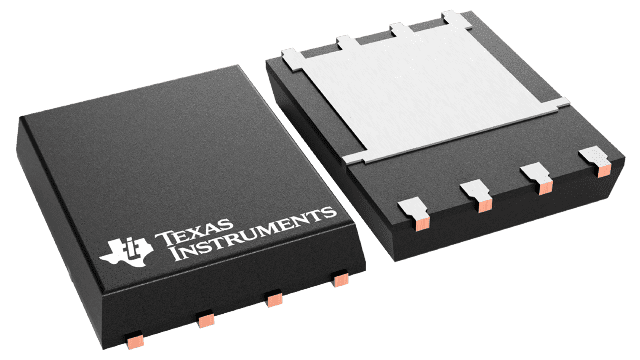

CSD16403Q5A

Active

Texas Instruments

25-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 5 MM X 6 MM, 3.7 MOHM

Search across all available documentation for this part.

Active

Texas Instruments

25-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 5 MM X 6 MM, 3.7 MOHM

Technical Specifications

Parameters and characteristics for this part

Specification	CSD16403Q5A

Current - Continuous Drain (Id) @ 25°C	100 A, 28 A
Drain to Source Voltage (Vdss)	25 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	18 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	2660 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	3.1 W
Rds On (Max) @ Id, Vgs	2.8 mOhm
Supplier Device Package	8-VSONP (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max) [Max]	16 V
Vgs (Max) [Min]	-12 V
Vgs(th) (Max) @ Id	1.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

25-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 3.7 mOhm

Part	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Technology	Package / Case	FET Type	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Vgs (Max) [Max]	Vgs (Max) [Min]	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs
Texas Instruments CSD16403Q5A	4.5 V, 10 V	2.8 mOhm	3.1 W	MOSFET (Metal Oxide)	8-PowerTDFN	N-Channel	1.9 V	150 °C	-55 °C	Surface Mount	16 V	-12 V	8-VSONP (5x6)	2660 pF	28 A, 100 A	25 V	18 nC

General part information

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
