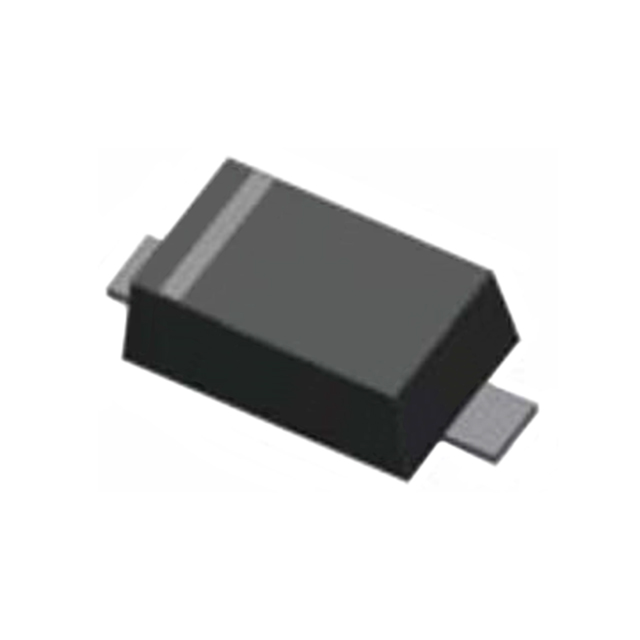

BZT52C7V5 RHG

Active

Taiwan Semiconductor Corporation

DIODE ZENER 7.5V 500MW SOD123F

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE ZENER 7.5V 500MW SOD123F

Technical Specifications

Parameters and characteristics for this part

...

Part	Impedance (Max) (Zzt) [Max]	Mounting Type	Voltage - Zener (Nom) (Vz)	Package / Case	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
Taiwan Semiconductor Corporation BZT52C75K	255 Ohms	Surface Mount	75 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	200 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C10K RKG	20 Ohms	Surface Mount	10 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	100 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C20-G RHG	55 Ohms	Surface Mount	20 V	SOD-123	350 mW			5 %	100 nA	SOD-123	150 °C	900 mV
Taiwan Semiconductor Corporation BZT52C75K RKG	255 Ohms	Surface Mount	75 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	200 nA	SOD-523F
Taiwan Semiconductor Corporation BZT52C4V3K	90 Ohms	Surface Mount	4.3 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	5 µA	SOD-523F
Taiwan Semiconductor Corporation BZT52C7V5 RHG	15 Ohms	Surface Mount	7.5 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	900 nA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C6V8 RHG	15 Ohms	Surface Mount	6.8 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	1.8 µA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C16 RHG	40 Ohms	Surface Mount	16 V	SOD-123F	500 mW	150 °C	-65 °C	5 %	45 nA	SOD-123F		1 V
Taiwan Semiconductor Corporation BZT52C5V1S RRG	60 Ohms	Surface Mount	5.1 V	SC-90 SOD-323F	200 mW	175 ░C	-55 °C	5 %	1.8 µA	SOD-323F		1 V
Taiwan Semiconductor Corporation BZT52C5V1K RKG	60 Ohms	Surface Mount	5.1 V	SC-79 SOD-523	200 mW	150 °C	-65 °C	5 %	2 µA	SOD-523F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Zener Diode 7.5 V 500 mW ±5% Surface Mount SOD-123F
