Q-0E02R0008012i

Active

Amphenol Custom Cable

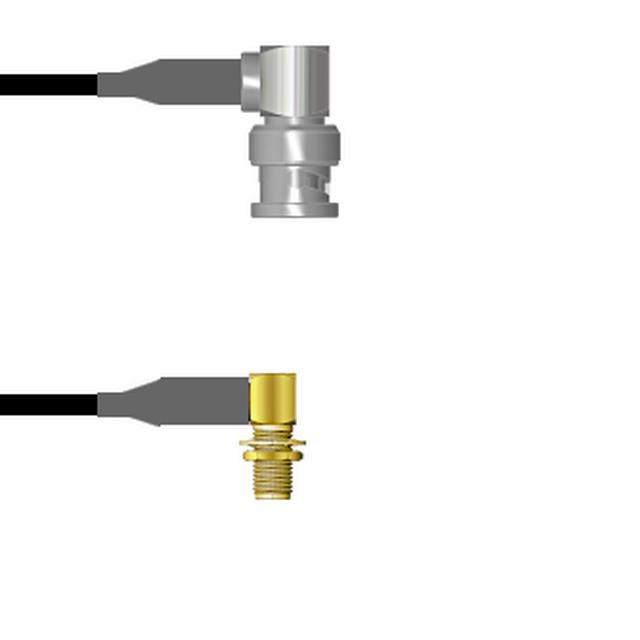

CBL ASSY BNC-SMA PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E02R0008012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E02R0008012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0E02R0 Series

Part	Style	1st Connector Mounting Type	2nd Contact Gender	2nd Connector Mounting Feature	Overall Impedance	Length	Length	Length	Cable Type	Frequency - Max [Max]	Color	1st Contact Gender	2nd Connector	2nd Connector Mounting Type	Features	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-0E02R0008060i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	5 ft	1.5 m	5 '	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008012i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms		304.8 mm	12 "	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008084i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	7 ft	2.1 m	84 in	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R00081.5M	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	4.9 ft	1.5 m	59.1 in	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008.75M	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms		750 mm	29.53 "	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R00080.5M	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms		50 cm	19.69 "	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008018i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms				RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E02R0008036i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms		91.44 cm	36 in	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008002M	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	6.6 ft	2 m	78.7 in	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle
Amphenol Custom Cable Q-0E02R0008108i	BNC to SMA	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	9 ft	2.7 m	108 in	RG-58	4 GHz	Black	Male	SMA Jack Right Angle	Panel Mount	Shielded	BNC Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 169.54
		25	$ 166.27
		50	$ 162.99
		100	$ 159.72
		250	$ 156.45

Description

General part information

Q-0E02R0 Series

Cable Assembly Coaxial BNC to SMA RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
