ANR-W-20A-16R
ActiveOptiFuse

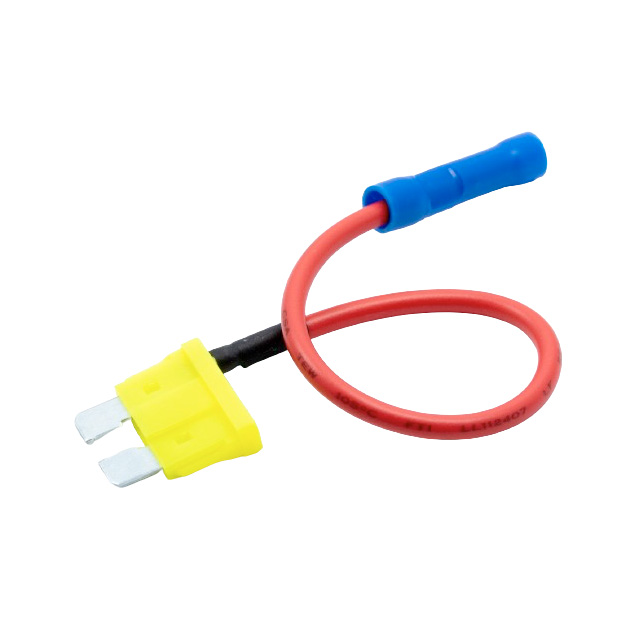

FUSE AUTO 20A 32VDC BLADE ATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANR-W-20A-16R
ActiveOptiFuse
FUSE AUTO 20A 32VDC BLADE ATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANR-W-20A-16R | ANR-W Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Yellow | Blue, Red, Yellow |
| Current Rating (Amps) | 20 A | 10 - 20 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | ATO, Blade, ATC | ATO, Blade, ATC |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 19.3 mm | 19.3 mm |
| Size / Dimension [x] | 0.76 " | 0.76 " |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [z] | 0.494 in | 0.494 in |
| Size / Dimension [z] | 12.54 mm | 12.54 mm |
| Voltage Rating - DC | 32 V | 32 V |
ANR-W Series
FUSE AUTO 15A 32VDC BLADE ATO
| Part | Current Rating (Amps) | Color | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Response Time | Breaking Capacity @ Rated Voltage | Fuse Type | Voltage Rating - DC | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANR-W-15A-16R | 15 A | Blue | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Requires Holder | Fast Blow | 1 kA | Automotive | 32 V | ATC, ATO, Blade |
OptiFuse ANR-W-10A-18R | 10 A | Red | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Requires Holder | Fast Blow | 1 kA | Automotive | 32 V | ATC, ATO, Blade |
OptiFuse ANR-W-20A-16R | 20 A | Yellow | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Requires Holder | Fast Blow | 1 kA | Automotive | 32 V | ATC, ATO, Blade |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.89 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.67 | |||
| 50 | $ 3.10 | |||
| 100 | $ 2.54 | |||
| 250 | $ 2.30 | |||
| 500 | $ 1.93 | |||
| 1000 | $ 1.68 | |||
Description
General part information
ANR-W Series
20 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
