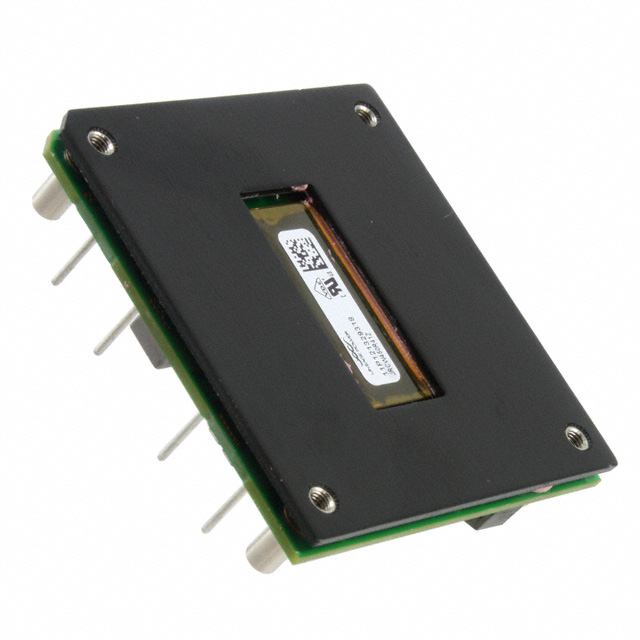

JRCW450R41-TZ

Active

OmniOn Power™

DC DC CONVERTER 32V 450W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JRCW450R41-TZ

Active

OmniOn Power™

DC DC CONVERTER 32V 450W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JRCW450R41-TZ

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	14 A
Efficiency	94 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module, 1/2 Brick
Power (Watts)	450 W
Size / Dimension [x]	2.39 "
Size / Dimension [x]	60.7 mm
Size / Dimension [y]	57.7 mm
Size / Dimension [y]	2.27 in
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	32 V

JRCW450 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Package / Case	Mounting Type	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package
OmniOn Power™ JRCW450R41-TZ	100 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module 1/2 Brick	Through Hole	Active Low Enable	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	Isolated Module	75 V	14 A	94 %	32 V
OmniOn Power™ JRCW450U64-18Z	100 °C	-40 °C	OCP OTP OVP Remote On/Off	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module	Through Hole	Active High Enable	2.27 "	60.7 mm	0.5 in	57.7 mm	2.39 in	12.7 mm	Isolated Module	75 V	9.4 A	94 %	48 V
OmniOn Power™ JRCW450R41Z	100 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module 1/2 Brick	Through Hole	Active Low Enable	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	Isolated Module	75 V	14 A	94 %	32 V
OmniOn Power™ JRCW450R841-TZ	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module	Through Hole	Active Low Enable	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	Isolated Module	75 V	14 A	94.4 %	32 V
OmniOn Power™ JRCW450U641-18Z	100 °C	-40 °C	OCP OTP OVP Remote On/Off	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module	Through Hole	Active Low Enable	2.27 "	60.7 mm	0.5 in	57.7 mm	2.39 in	12.7 mm	Isolated Module	75 V	9.4 A	94 %	48 V
OmniOn Power™ JRCW450R541Z	85 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module	Through Hole	Active Low Enable	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	Isolated Module	75 V	14 A	94.4 %	32 V
OmniOn Power™ JRCW450U641Z	100 °C	-40 °C	OCP OTP OVP Remote On/Off	1	ITE (Commercial)	36 V	450 W	1.5 kV	9-DIP Module	Through Hole	Active Low Enable	2.27 "	60.7 mm	0.5 in	57.7 mm	2.39 in	12.7 mm	Isolated Module	75 V	9.4 A	94 %	48 V
OmniOn Power™ JRCW450U64-35Z	100 °C	-40 °C	OCP OTP OVP Remote On/Off SCP UVLO	1	ITE (Commercial)	36 V	450 W	1.5 kV	Half Brick	Through Hole		2.39 "		0.5 in	60.7 mm	2.27 in		Isolated Module	75 V	9.4 A	94 %	48 V	12.8 mm	57.7 mm	Half Brick

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 67.64

Description

General part information

JRCW450 Series

Isolated Module DC DC Converter 1 Output 32V 14A 36V - 75V Input
