Connectors, Interconnects
85969-6
ActiveTE Connectivity Raychem Cable Protection

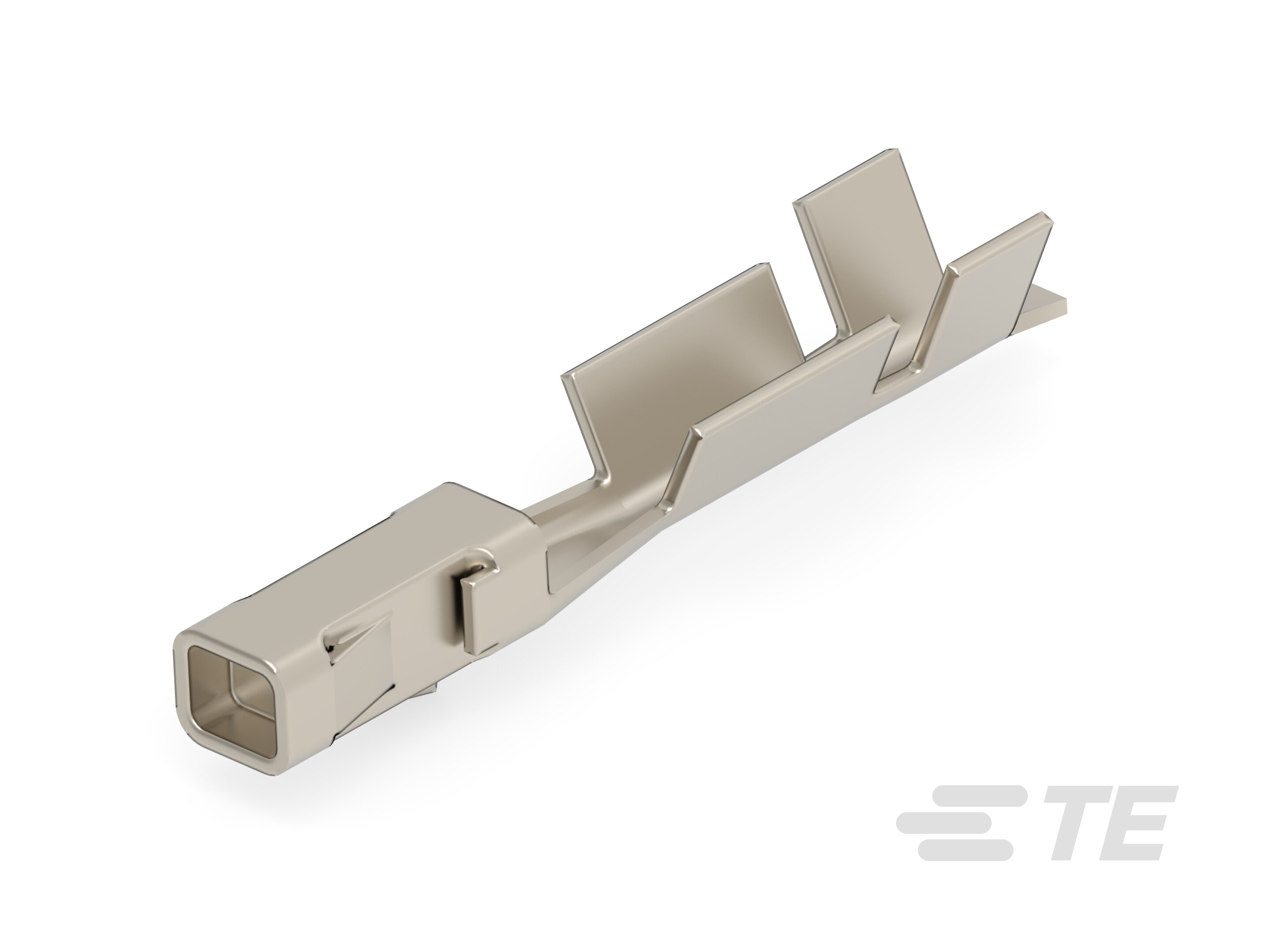

CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
85969-6
ActiveTE Connectivity Raychem Cable Protection
CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 85969-6 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| 2500 | $ 0.33 | |||
| Tape & Reel (TR) | 50000 | $ 0.27 | ||
Description
General part information
85969 Series
Socket Contact Gold 20-24 AWG Crimp
