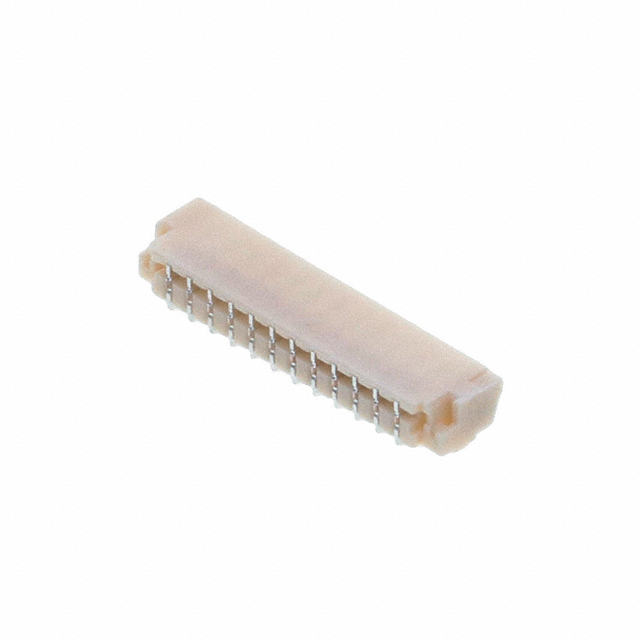

SM12B-SURS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 12POS 0.8MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 12POS 0.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM12B-SURS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	0.2 A, 0.5 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.069 in
Insulation Height	1.75 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC

Part	Contact Material	Features	Style	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Type	Insulation Material	Connector Type	Termination	Mounting Type	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Rows	Number of Positions	Shrouding	Contact Finish - Post	Contact Shape
JST Sales America Inc. SM12B-SURS-TF	Copper Alloy	Solder Retention	Board to Cable/Wire	30 VDC	UL94 V-0	All	-25 °C	85 °C	0.031 in	0.8 mm	Push-Pull	Natural	Outer Shroud Contact	Nylon Polyamide (PA)	Header	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	0.2 A 0.5 A	1	12	Shrouded - 4 Wall	Tin	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 12 position 0.031" (0.80mm)
