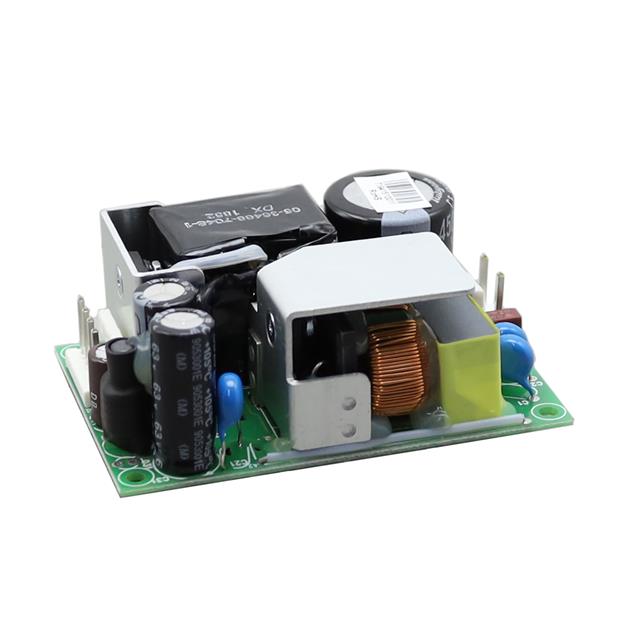

MB60S48C
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 48V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB60S48C
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 48V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB60S48C |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 1.25 A |
| Efficiency | Level V |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 25.4 mm |
| Size / Dimension [z] | 1 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MB60S48 Series
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
