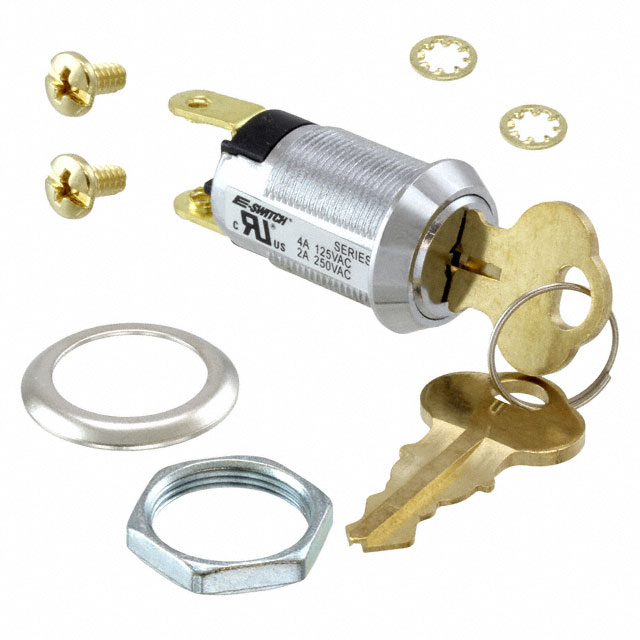

KO128B2007

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 4A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KO128B2007

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPST
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	39.5 mm
Key Removable Positions	All
Number of Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Switch Function	Key Removable Positions	Panel Cutout Dimensions [diameter]	Termination Style	Depth Behind Flange	Contact Material	Contact Timing	Angle of Throw	Number of Positions	Voltage Rating - AC	Circuit	Contact Finish	Actuator Type
E-Switch KO128B2007	4 A	Off-On	All	19 mm	Screw Terminal	39.5 mm	Copper Alloy	Not Specified	90 °	2	125 V	SPST	Silver	Flat Key
E-Switch KO128H2007	4 A	Off-Mom	1 only	19 mm	Quick Connect - 0.250" (6.3mm)	38 mm	Copper Alloy	Not Specified	90 °	2	125 V	SPST-NO	Silver	Flat Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPST 4A (AC) 125 VAC DC Panel Mount
