Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNA165114R1700 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [x] | 12 mm |
| Terminal - Width [y] | 8 mm |
| Termination Style | Screw |
| Type | Ground, Earth |
| Wire Gauge or Range - mm˛ [Max] | 10 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.5 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ENTRELEC SNA Series

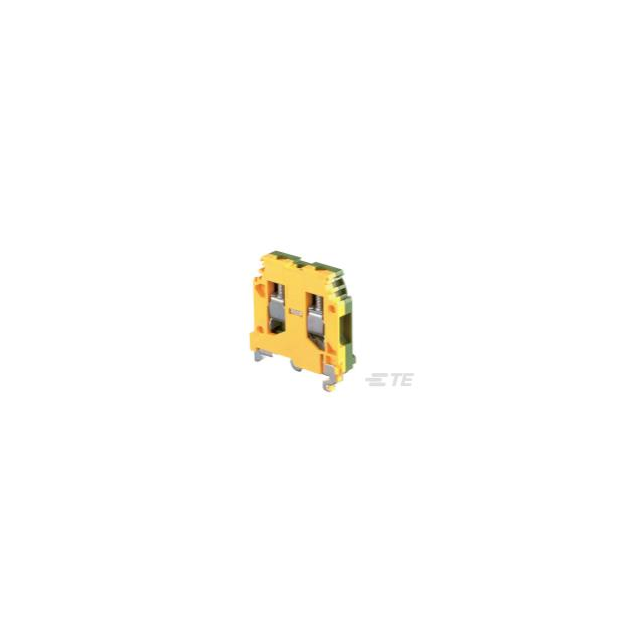

Screw Clamp Terminal Block, Ground, Green & Yellow, 8 mm [.314 in] Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 8 AWG, ENTRELEC SNA
