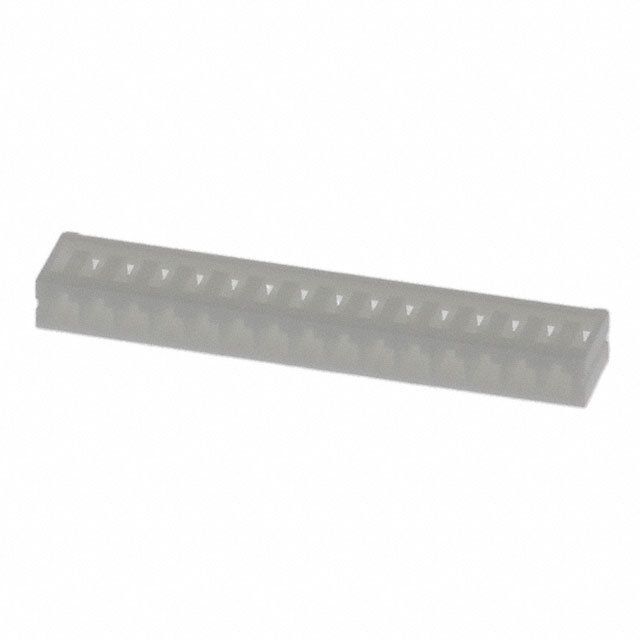

10156618-1500LF

10156618-1500LF

Active

Amphenol ICC (FCI)

CONN BOARD-IN HSG 15POS 2.50MM

10156618-1500LF

10156618-1500LF

Active

Amphenol ICC (FCI)

CONN BOARD-IN HSG 15POS 2.50MM

Description Specifications Series Pricing CAD Documents

Description

General part information

10156618 Series

15 Rectangular Connectors - Housings Board-In Natural 0.098" (2.50mm)

Technical Specifications

Parameters and characteristics for this part

Specification	10156618-1500LF

Color	Natural
Connector Type	Board-In
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Through Hole
Note	Contacts Not Included
Number of Positions	15
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

minitek productpresentation Other Related Document

10156616-0300LF

10156618-1500LF | Datasheet

10156618 Series

Part	Note	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Number of Positions	Insulation Material	Color	Connector Type	Mounting Type	Pitch	Contact Type
Amphenol ICC (FCI) 10156618-1500LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	15	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-0600LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	6	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin

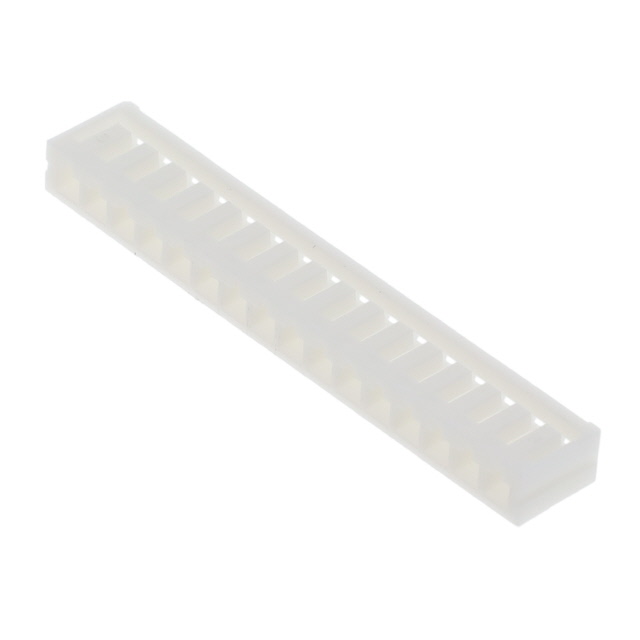

Amphenol ICC (FCI) 10156618-1600LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	16	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-0900LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	9	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-1200LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	12	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin

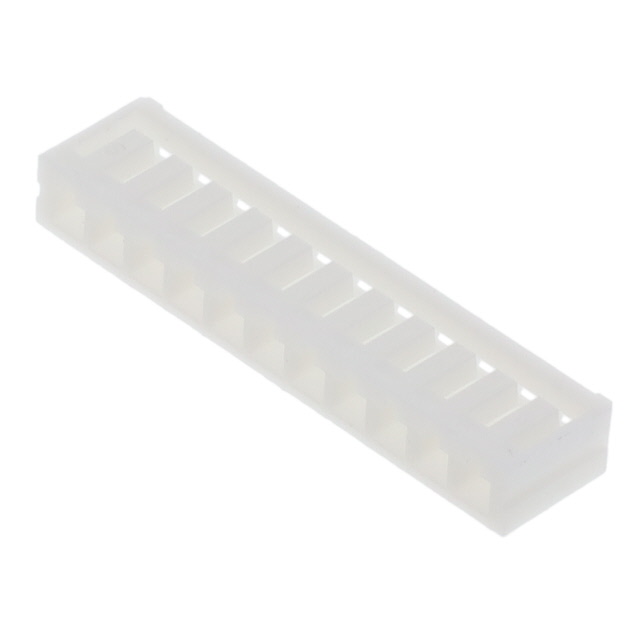

Amphenol ICC (FCI) 10156618-1100LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	11	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-0500LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	5	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-0200LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	2	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin

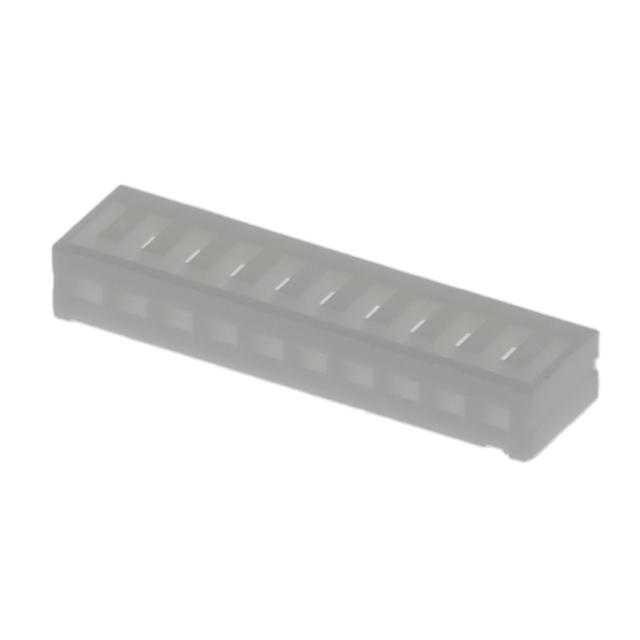

Amphenol ICC (FCI) 10156618-1000LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	10	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
Amphenol ICC (FCI) 10156618-1400LF	Contacts Not Included	Crimp	-40 °C	105 °C	1	14	Nylon 6/6 Polyamide (PA66)	Natural	Board-In	Through Hole	0.098 in	Male Pin
