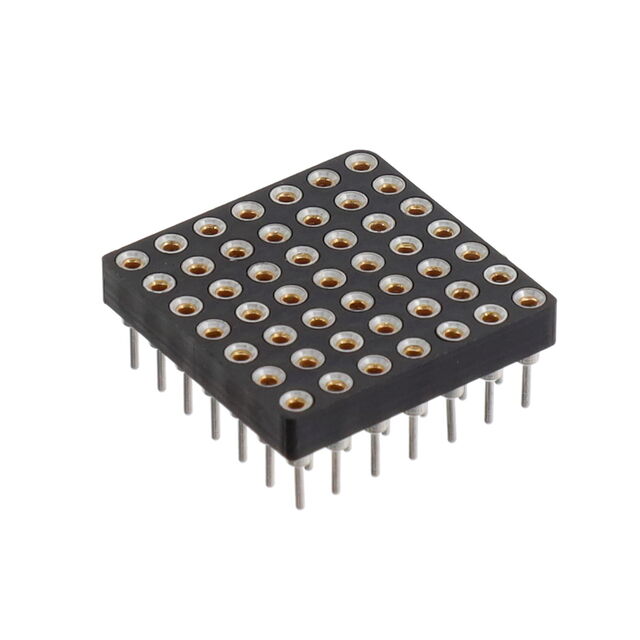

510-93-049-07-000001

Active

Mill-Max Manufacturing Corp.

SKT PGA SOLDRTL

Deep-Dive with AI

Search across all available documentation for this part.

510-93-049-07-000001

Active

Mill-Max Manufacturing Corp.

SKT PGA SOLDRTL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	510-93-049-07-000001

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	49
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	2.54 mm
Type	0.1 "
Type	DIP

510-93 Series

Part	Housing Material	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Contact Resistance	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Contact Material - Post	Mounting Type	Features	Contact Material - Mating	Material Flammability Rating	Termination Post Length	Termination Post Length	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Mill-Max Manufacturing Corp. 510-93-176-15-061002	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in	10 mOhm	Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder	176	15	15
Mill-Max Manufacturing Corp. 510-93-128-13-041001	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in		Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper		3.18 mm	0.125 in	-55 °C	125 °C	Solder	128
Mill-Max Manufacturing Corp. 510-93-049-07-000001	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm				Gold	3 A	30 Áin	0.76 Ám	DIP	Brass Alloy	Through Hole		Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder	49			2.54 mm	0.1 "	200 µin	5.08 µm	Tin
Mill-Max Manufacturing Corp. 510-93-132-13-041001	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in		Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper		3.18 mm	0.125 in	-55 °C	125 °C	Solder	132
Mill-Max Manufacturing Corp. 510-93-223-18-095002	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in	10 mOhm	Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder	223					200 µin	5.08 µm	Tin-Lead
Mill-Max Manufacturing Corp. 510-93-084-11-045003	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in	10 mOhm	Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder	84					200 µin	5.08 µm	Tin-Lead
Mill-Max Manufacturing Corp. 510-93-100-10-000001	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in		Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Closed Frame	Beryllium Copper		3.18 mm	0.125 in	-55 °C	125 °C	Solder	100
Mill-Max Manufacturing Corp. 510-93-176-15-061001	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in	10 mOhm	Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder	176	15	15			200 µin	5.08 µm	Tin-Lead
Mill-Max Manufacturing Corp. 510-93-299-20-096002	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	2.54 mm	0.1 in	10 mOhm	Gold	3 A	30 Áin	0.76 Ám	PGA	Brass Alloy	Through Hole	Open Frame	Beryllium Copper	UL94 V-0	3.18 mm	0.125 in	-55 °C	125 °C	Solder						200 µin	5.08 µm	Tin-Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 29.44

Description

General part information

510-93 Series

49 (7 x 7) Pos DIP, 0.1" (2.54mm) Row Spacing Socket Gold Through Hole
