Q-2I01F0005003i

Active

Amphenol Custom Cable

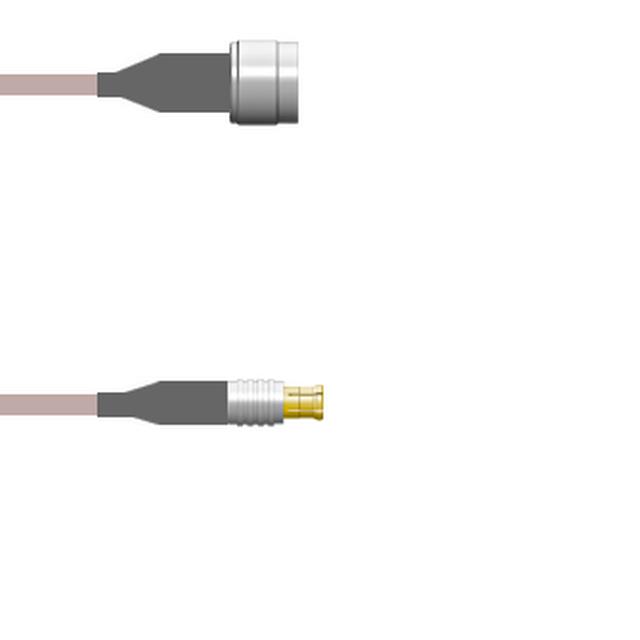

CBL ASSY MCX-NTYPE PLUG-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I01F0005003i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I01F0005003i

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2I01F0 Series

Part	Style	1st Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	1st Connector	Cable Type	Color	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	Features	2nd Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2I01F0003084i	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-174	Black	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2I01F0003001M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-174	Black	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2I01F0005048i	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-316	Copper	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-2I01F00050.5M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-316	Copper	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	19.69 "	50 cm
Amphenol Custom Cable Q-2I01F0005003i	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-316	Copper	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	3 in	76.2 mm
Amphenol Custom Cable Q-2I01F00031.5M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-174	Black	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-2I01F0003.25M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-174	Black	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug				9.843 "	250 mm
Amphenol Custom Cable Q-2I01F0005060i	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-316	Copper	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-2I01F00030.5M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-174	Black	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	19.69 "	50 cm
Amphenol Custom Cable Q-2I01F0005.75M	MCX to N-Type	Free Hanging (In-Line)	6000 MHz	50 Ohms	MCX Plug	RG-316	Copper	Male	Free Hanging (In-Line)	Male	Shielded	N-Type Plug	29.53 "	750 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.22
		25	$ 87.49
		50	$ 85.76
		100	$ 84.02
		250	$ 82.29

Description

General part information

Q-2I01F0 Series

Cable Assembly Coaxial MCX to N-Type RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
