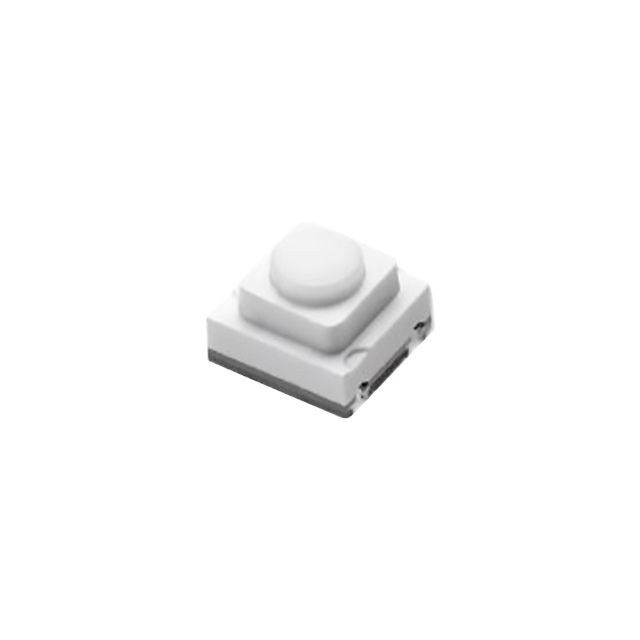

LS38G5-T

Active

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Active

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LS38G5-T

Actuator Height off PCB, Vertical [z]	1.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	428 gf
Outline [x]	3.3 mm
Outline [y]	3.1 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	SMD (SMT) Tab

SWITCH TACTILE SPST-NO 0.02A 12V

Part	Termination Style	Mounting Type	Outline [y]	Outline [x]	Contact Rating @ Voltage	Actuator Orientation	Operating Force	Actuator Type	Illumination	Switch Function	Switch Travel	Circuit	Mechanical Life	Actuator Height off PCB, Vertical [z]
Citizen LS38G5-T	SMD (SMT) Tab	Surface Mount	3.1 mm	3.3 mm	0.02 A, 12 VDC	Top Actuated	428 gf	Round Button	Non-Illuminated	Off-Mom	0.15 mm	SPST-NO	100000 Cycles	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
	Digi-Reel®	1	$ 0.45
	Tape & Reel (TR)	6000	$ 0.22

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
