EXG.1B.307.HLN
ActiveLEMO

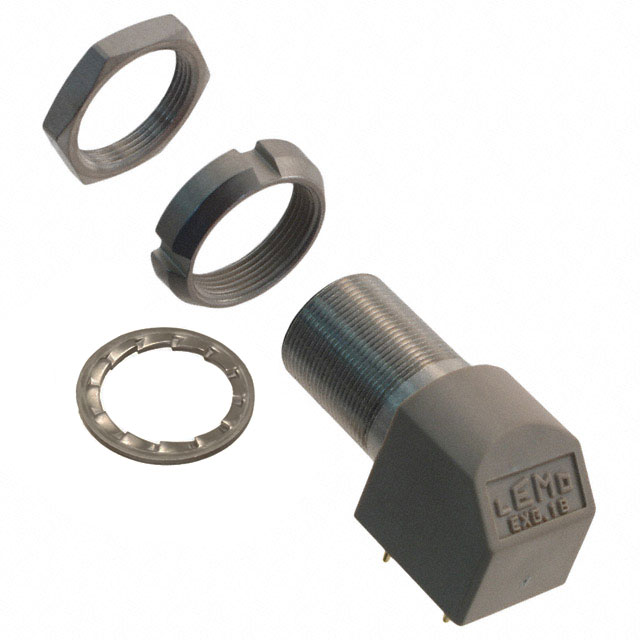

CONN RCPT FMALE 7POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
EXG.1B.307.HLN
ActiveLEMO
CONN RCPT FMALE 7POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EXG.1B.307.HLN | EXG.1B Series |
|---|---|---|
| Color | Brown, Silver | Brown, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 2 A | 1.5 - 4.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Ground | Ground |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 7 | 2 - 10 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass and Polyphenylene Sulfide (PPS) | Brass and Polyphenylene Sulfide (PPS) |
| Shell Size - Insert | 307 | 302 - 310 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EXG.1B Series
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Features | Connector Type | Shielding | Shell Finish | Current Rating (Amps) | Termination | Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Mounting Feature | Shell Size - Insert | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Fastening Type | Ingress Protection | Contact Finish - Mating | Mounting Type | Insert Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EXG.1B.305.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 4.5 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 305 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | |
LEMO EXG.1B.308.HLNS | Receptacle, Female Sockets | Shielded | Nickel | 2 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 308 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 8 | |
LEMO EXG.1B.308.LLNY | Ground | Receptacle, Female Sockets | Shielded | Nickel | 2 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 308 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 8 |
LEMO EXG.1B.307.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 2 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 307 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 7 |
LEMO EXG.1B.302.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 4.5 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 302 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 2 |
LEMO EXG.1B.310.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 1.5 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 310 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 10 |
LEMO EXG.1B.304.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 4.5 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 304 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | 4 |
LEMO EXG.1B.303.HLN | Ground | Receptacle, Female Sockets | Shielded | Nickel | 4.5 A | Solder | G | Brown, Silver | -55 °C | 250 °C | Metal | Bulkhead - Front Side Nut | 303 | Brass and Polyphenylene Sulfide (PPS) | 59 Áin | 1.5 Ám | UL94 V-0 | Bronze | Push-Pull | IP50 | Gold | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.16 | |
| 10 | $ 61.56 | |||
| 25 | $ 56.00 | |||
| 50 | $ 53.76 | |||
Description
General part information
EXG.1B Series
7 Position Circular Connector Receptacle, Female Sockets Solder
