EXG.1B.304.HLN

Active

LEMO

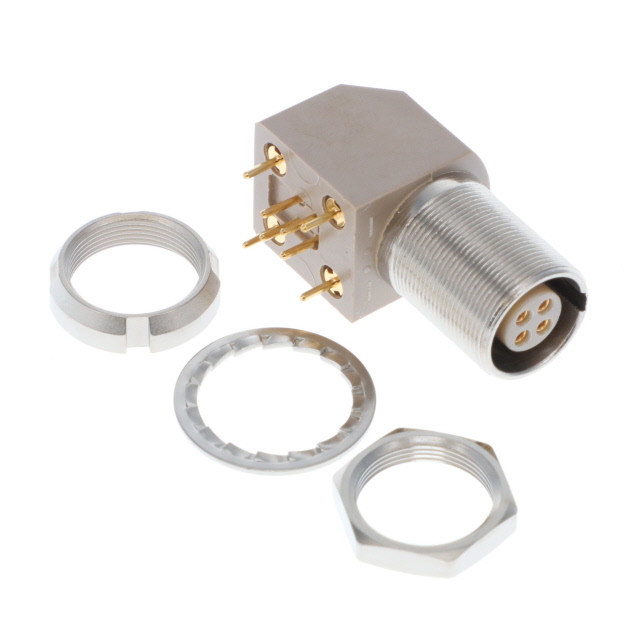

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXG.1B.304.HLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.37
		10	$ 56.31
		25	$ 54.15
		50	$ 52.34
		100	$ 49.45

Description

General part information

EXG.1B Series

4 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXG.1B.304.HLN	EXG.1B Series

Color	Brown, Silver	Brown, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	4.5 A	1.5 - 4.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	4	2 - 10
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304	302 - 310
Shielding	Shielded	Shielded
Termination	Solder	Solder

EXG.1B Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Features	Connector Type	Shielding	Shell Finish	Current Rating (Amps)	Termination	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Feature	Shell Size - Insert	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Fastening Type	Ingress Protection	Contact Finish - Mating	Mounting Type	Insert Material	Number of Positions
LEMO EXG.1B.305.HLN	Ground	Receptacle, Female Sockets	Shielded	Nickel	4.5 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	305	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)
LEMO EXG.1B.308.HLNS		Receptacle, Female Sockets	Shielded	Nickel	2 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	308	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	8
LEMO EXG.1B.308.LLNY	Ground	Receptacle, Female Sockets	Shielded	Nickel	2 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	308	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	8
LEMO EXG.1B.307.HLN	Ground	Receptacle, Female Sockets	Shielded	Nickel	2 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	307	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	7
LEMO EXG.1B.302.HLN	Ground	Receptacle, Female Sockets	Shielded	Nickel	4.5 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	302	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	2
LEMO EXG.1B.310.HLN	Ground	Receptacle, Female Sockets	Shielded	Nickel	1.5 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	310	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	10
LEMO EXG.1B.304.HLN	Ground	Receptacle, Female Sockets	Shielded	Nickel	4.5 A	Solder	G	Brown, Silver	-55 °C	250 °C	Metal	Bulkhead - Front Side Nut	304	Brass and Polyphenylene Sulfide (PPS)	59 Áin	1.5 Ám	UL94 V-0	Bronze	Push-Pull	IP50	Gold	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	4
