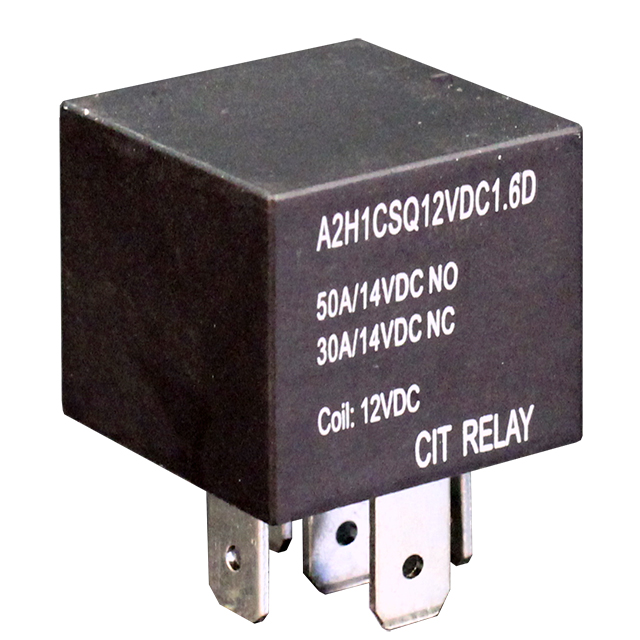

A2H1CSQ12VDC1.6D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 50A 12V

Part	Mounting Type	Contact Rating (Current)	Coil Current	Coil Resistance	Must Release Voltage	Must Operate Voltage	Coil Type	Coil Voltage	Release Time	Termination Style	Switching Voltage	Features	Contact Form	Operate Time	Coil Power	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch A2H1CSQ12VDC1.6D	Socketable	50 A	133.3 mA	90 Ohms	1.2 VDC	7.8 VDC	Non Latching	12 VDC	10 ms	Plug In, Quick Connect - 0.250" (6.3mm)	75 VDC	Diode, Sealed - Fully	SPDT (1 Form C)	10 ms	1.6 W	Silver Tin Oxide (AgSnO)	125 °C	-40 °C
CIT Relay and Switch A2H1CSQ24VDC1.6	Socketable	50 A	66.7 mA	360 Ohms	2.4 VDC		Non Latching	24 VDC	10 ms	Plug In, Quick Connect - 0.250" (6.3mm)	75 VDC	Sealed - Fully	SPDT (1 Form C)	10 ms	1.6 W	Silver Tin Oxide (AgSnO)	125 °C	-40 °C
CIT Relay and Switch A2H1CSQ12VDC1.6	Socketable	50 A	133.3 mA	90 Ohms	1.2 VDC	7.8 VDC	Non Latching	12 VDC	10 ms	Plug In, Quick Connect - 0.250" (6.3mm)	75 VDC	Sealed - Fully	SPDT (1 Form C)	10 ms	1.6 W	Silver Tin Oxide (AgSnO)	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 50A 12V
