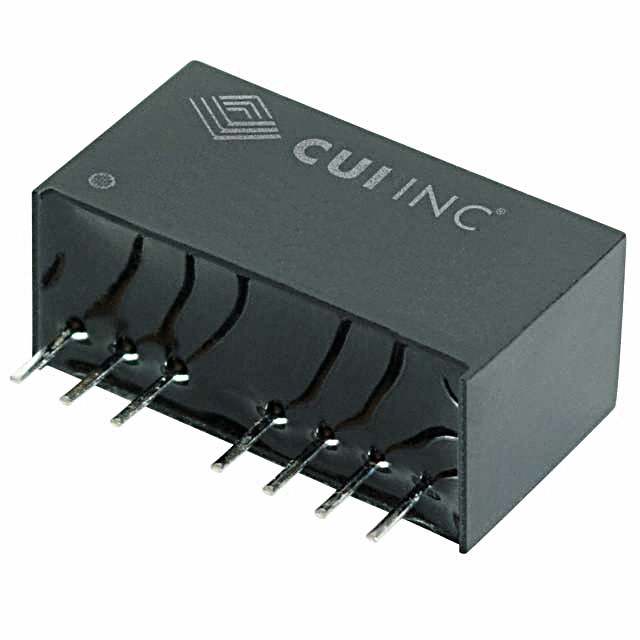

PQMC1-D5-D12-S

CUI Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

Search across all available documentation for this part.

PQMC1-D5-D12-S

CUI Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQMC1-D5-D12-S

Applications	ITE (Commercial)
Approval Agency	EN
Control Features	Active Low, Enable
Current - Output (Max)	41 mA
Current - Output (Max)	41 mA
Efficiency	75 %
Features	OCP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.87 in
Size / Dimension [y]	0.37 "
Size / Dimension [y]	9.5 mm
Size / Dimension [z]	0.47 "
Size / Dimension [z]	12 mm
Standard Number	55024, 55032
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PQMC1 Series

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Control Features	Applications	Efficiency	Approval Agency	Features	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Isolation	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Output 2	Standard Number	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Current - Output (Max)
CUI Inc. PQMC1-D5-D12-S	12 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	75 %	EN	OCP SCP	41 mA	41 mA	4.5 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	9 V	-12 V	55024 55032	Through Hole	2
CUI Inc. PQMC1-D12-S15-S	15 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			9 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	18 V		55024 55032	Through Hole	1	67 mA
CUI Inc. PQMC1-D12-S5-S	5 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	76 %	EN	OCP SCP			9 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	18 V		55024 55032	Through Hole	1	200 mA
CUI Inc. PQMC1-D12-S12-S	12 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	80 %	EN	OCP SCP			9 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	18 V		55024 55032	Through Hole	1	83 mA
CUI Inc. PQMC1-D24-D15-S	15 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	80 %	EN	OCP SCP			18 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	36 V	-15 V	55024 55032	Through Hole	2		33 mA
CUI Inc. PQMC1-D48-S15-S	15 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			36 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	75 V		55024 55032	Through Hole	1	67 mA
CUI Inc. PQMC1-D24-S24-S	24 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			18 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	36 V		55024 55032	Through Hole	1	42 mA
CUI Inc. PQMC1-D24-S12-S	12 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			18 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	36 V		55024 55032	Through Hole	1	83 mA
CUI Inc. PQMC1-D24-S15-S	15 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			18 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	36 V		55024 55032	Through Hole	1	67 mA
CUI Inc. PQMC1-D48-S12-S	12 V	-40 °C	105 ░C	Isolated Module	Active Low Enable	ITE (Commercial)	81 %	EN	OCP SCP			36 V	1.5 kV	8-SIP Module	7 Leads	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	75 V		55024 55032	Through Hole	1	83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.12
		5	$ 11.03
		22	$ 10.95

Description

General part information

PQMC1 Series

Isolated Module DC DC Converter 2 Output 12V -12V 41mA, 41mA 4.5V - 9V Input
